411 Meeting Street · ES-P300 proposal drawings - Proposal PDF

411 Meeting Street — front elevation, photorealistic rendering

411 Meeting Street Light & material

Front elevation

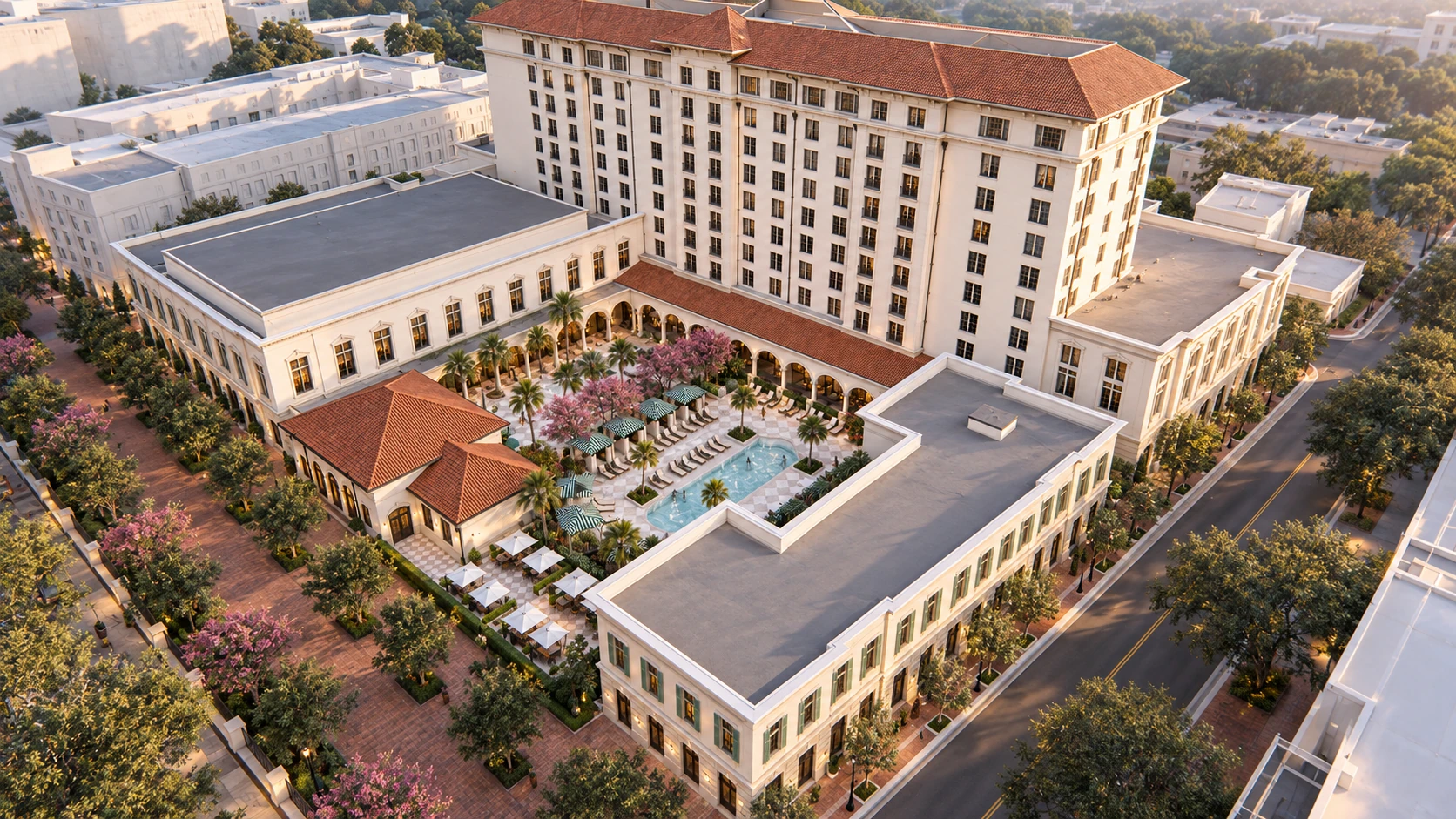

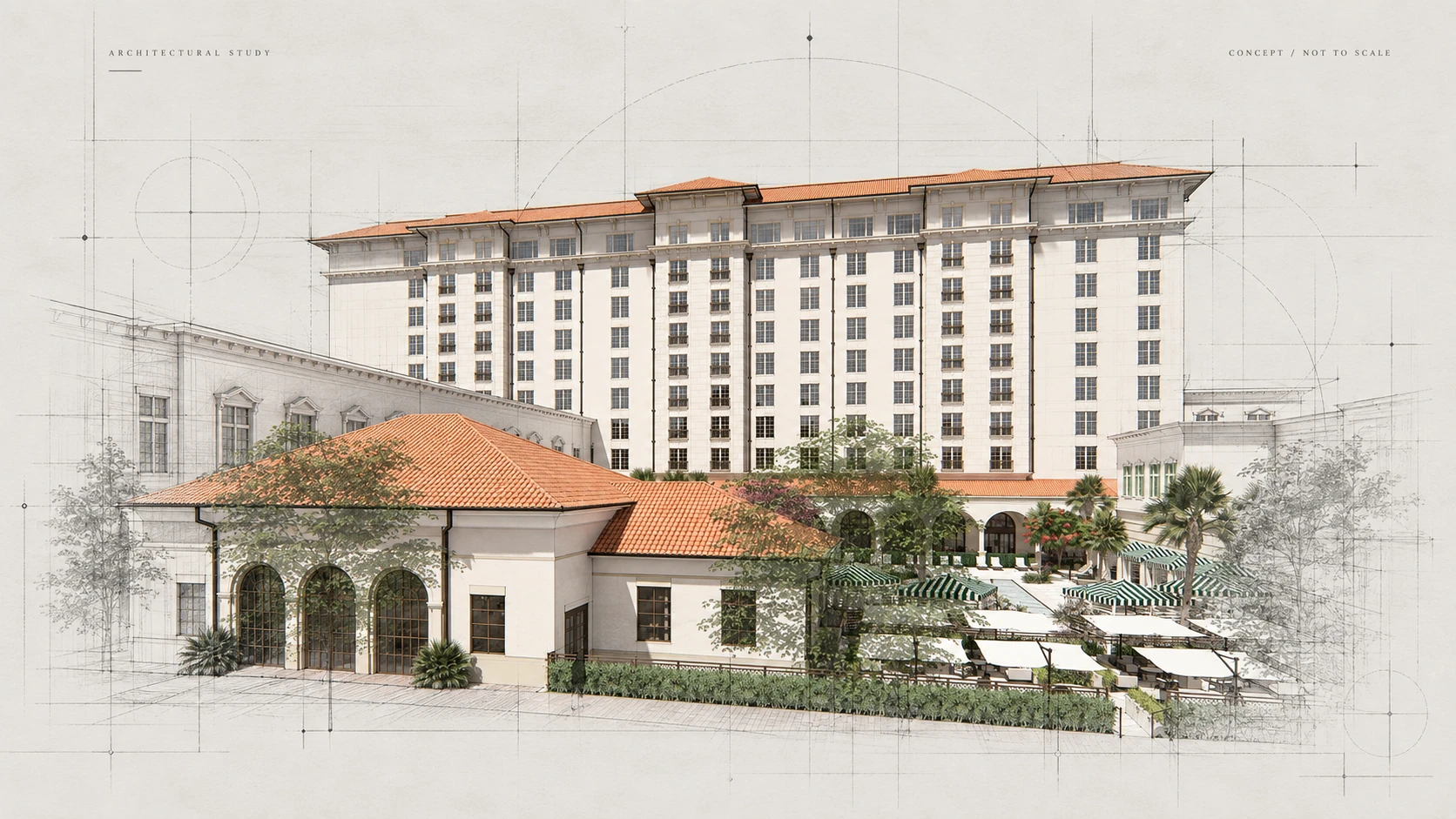

411 Meeting Street — site overview, photorealistic rendering

411 Meeting Street Light & material

Site overview

Opening systems & product data

Specified systems

Specified systems by opening location
Application	System	Status
Ground-level openings	ES-8000TStorefront	Basis of design
Ground-level entrance doors	ES-9000Impact doors	Specified
Hotel terraces & sidelites	ES-46TTerrace doors	Specified
Hotel windows	ES-P300Fixed windows · proposal drawings, 9 Oct 2026	Specified
Main entrance doors	Hope’sJamestown175 steel doors	Specified

Alternate: ES-7525 curtain wall. Carried as separate alternate pricing at ground-level openings; ES-8000T is the basis of design.

Hope’s Jamestown175 hot-rolled steel doors are specified at the main front-elevation entrance.

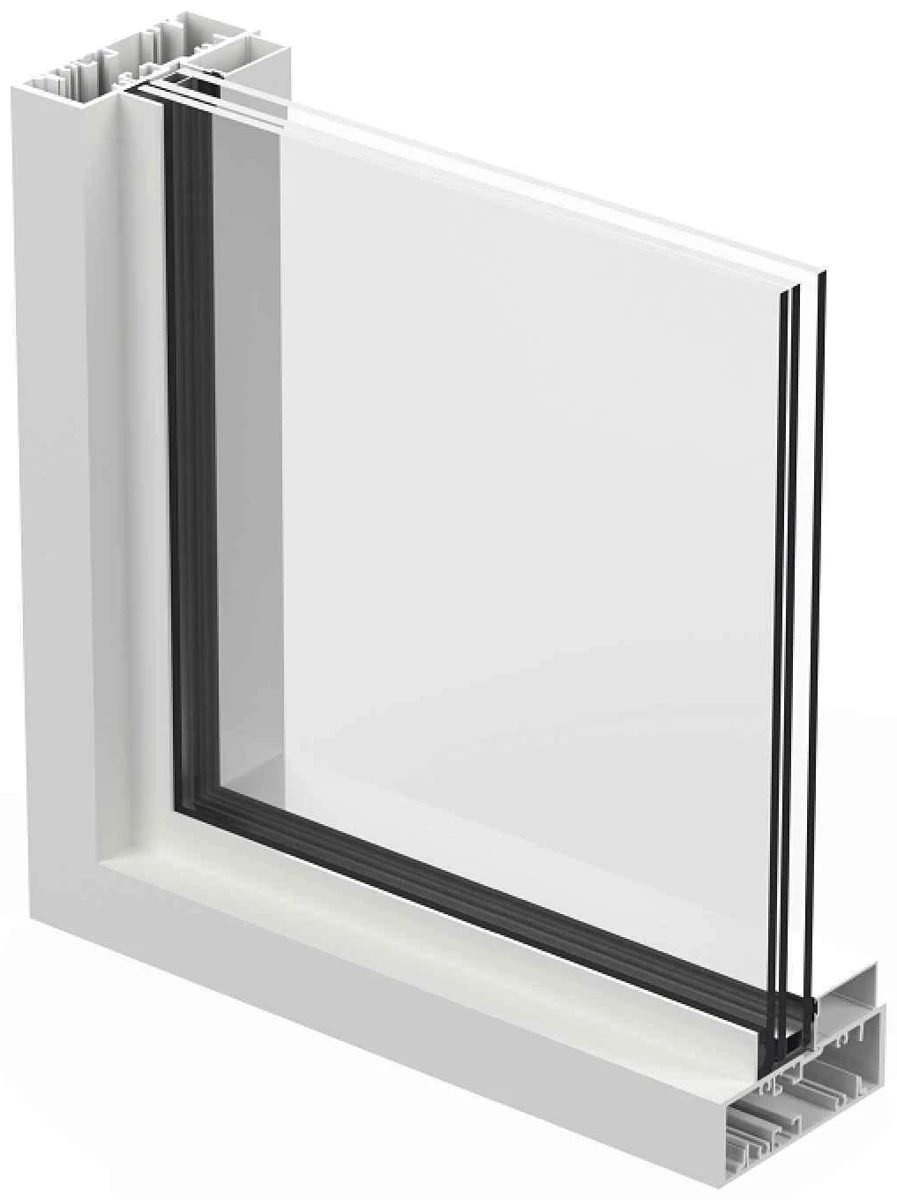

ES-8000T aluminum frame and insulating laminated glass cutaway

ES-8000T storefront

Thermally broken aluminum · Large-missile-impact system · Insulating laminated glazing

Product rendering from supplied data sheet

Frame depth: 5″
Design loads: +90 / −120 psf
Maximum panel: 44¼″ × 144″ W × H
Aluminum alloy: 6063-T6
Water test pressure: 13.5 psf
Air test pressure: 6.25 psf

Fabrication & appearance
Preassembled / preglazed · Screw covers · Applied ogee or flat muntins

Manufacturer values for the specified configuration. Air value is test pressure, not leakage rate.

ES-8000T manufacturer references · May 2026Product data · 3 pages ↗Storefront details · 3 pages ↗

411 Meeting Street Specified systems

Products & storefront details

Select an image to enlarge · Product names link to sources

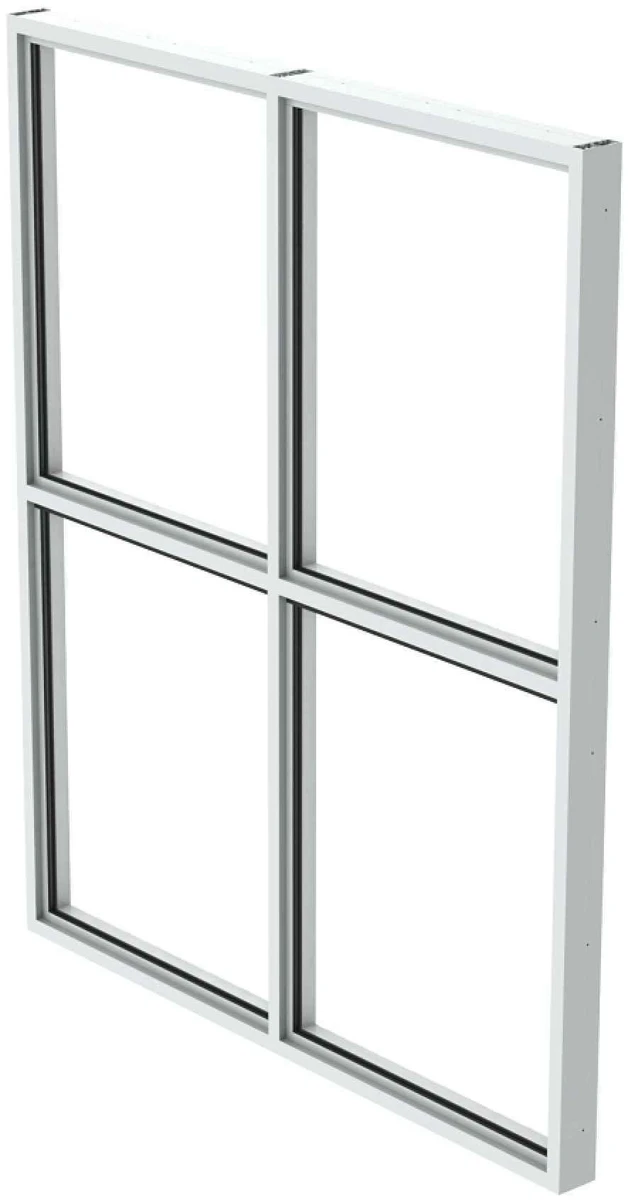

ES-8000T manufacturer illustration for ground-level storefront — ES-8000T ↗
Ground-level storefront
Basis of design

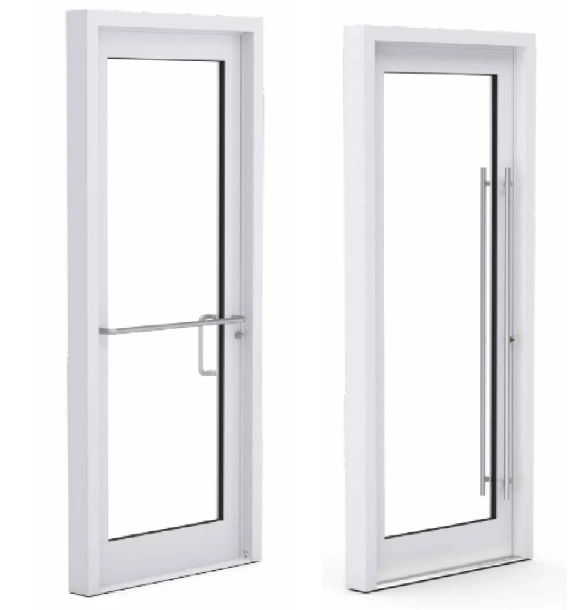

ES-9000 manufacturer illustration for ground-level impact doors — ES-9000 ↗
Ground-level impact doors
Specified

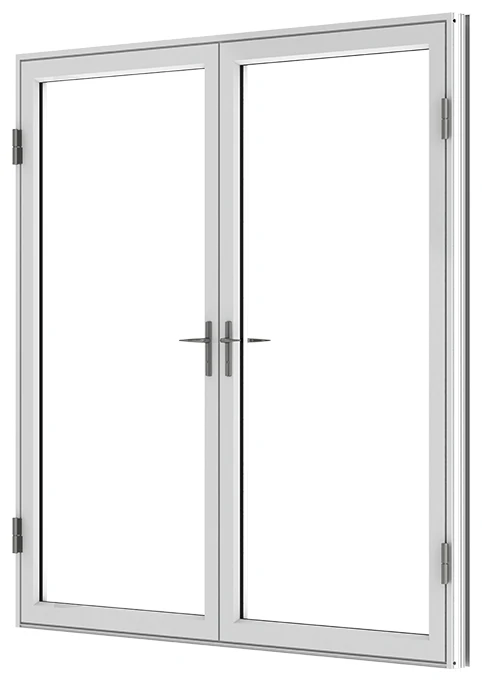

ES-46T manufacturer illustration for hotel terrace doors & sidelites — ES-46T ↗
Hotel terrace doors & sidelites
Specified

ES-P300 manufacturer illustration for hotel fixed windows — ES-P300 ↗
Hotel fixed windows
Specified

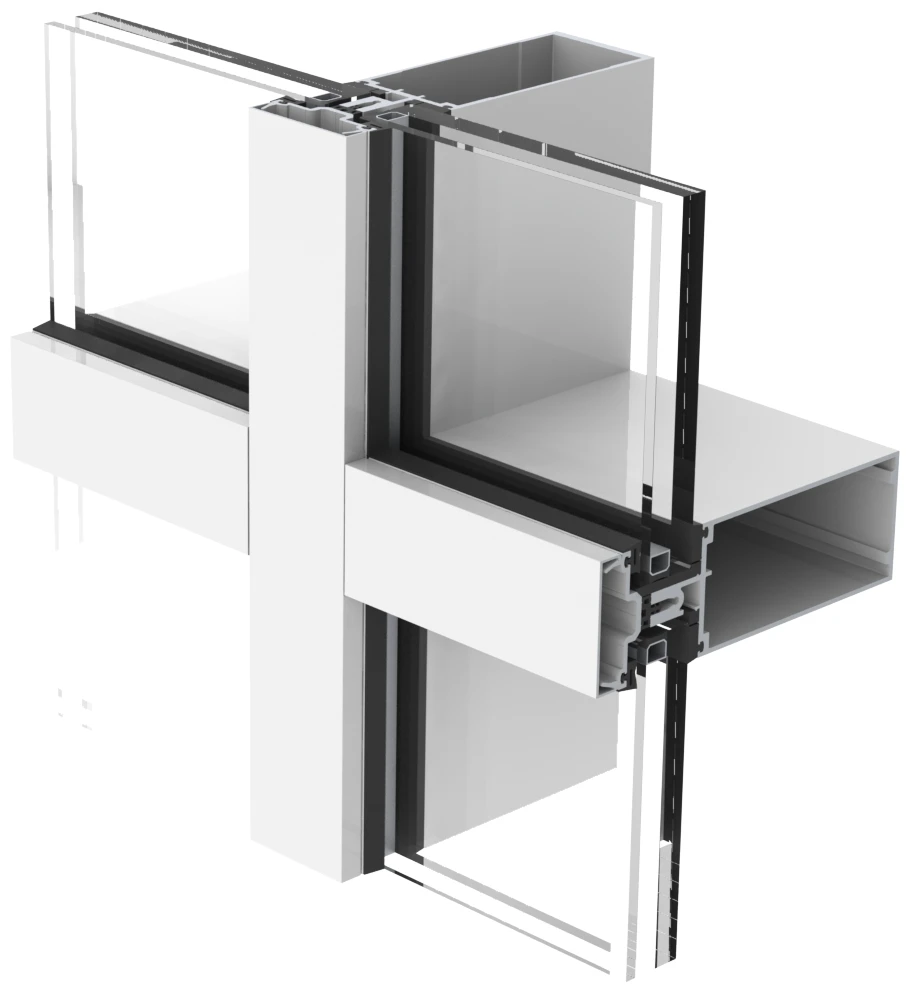

ES-7525 manufacturer illustration for curtain wall alternate — ES-7525 ↗
Curtain wall alternate
Alternate

ES Windows illustrations of the specified configurations. ES-8000T is the basis of design at ground level; ES-7525 is carried as alternate pricing.

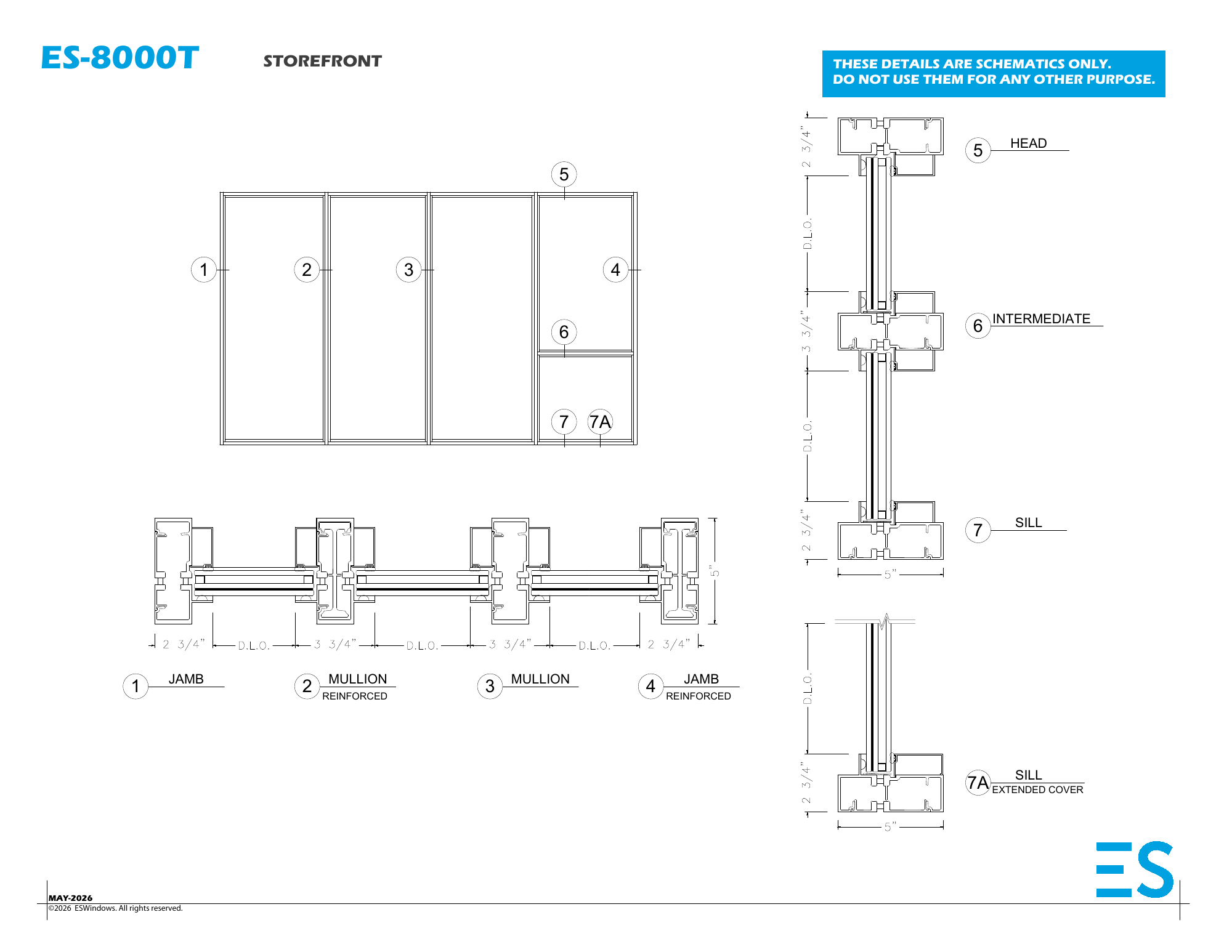

ES-8000T manufacturer schematic sheet 1: Standard storefront — Standard storefront p. 1
Head, sill, jamb and mullion sections; reinforced members and extended sill cover.

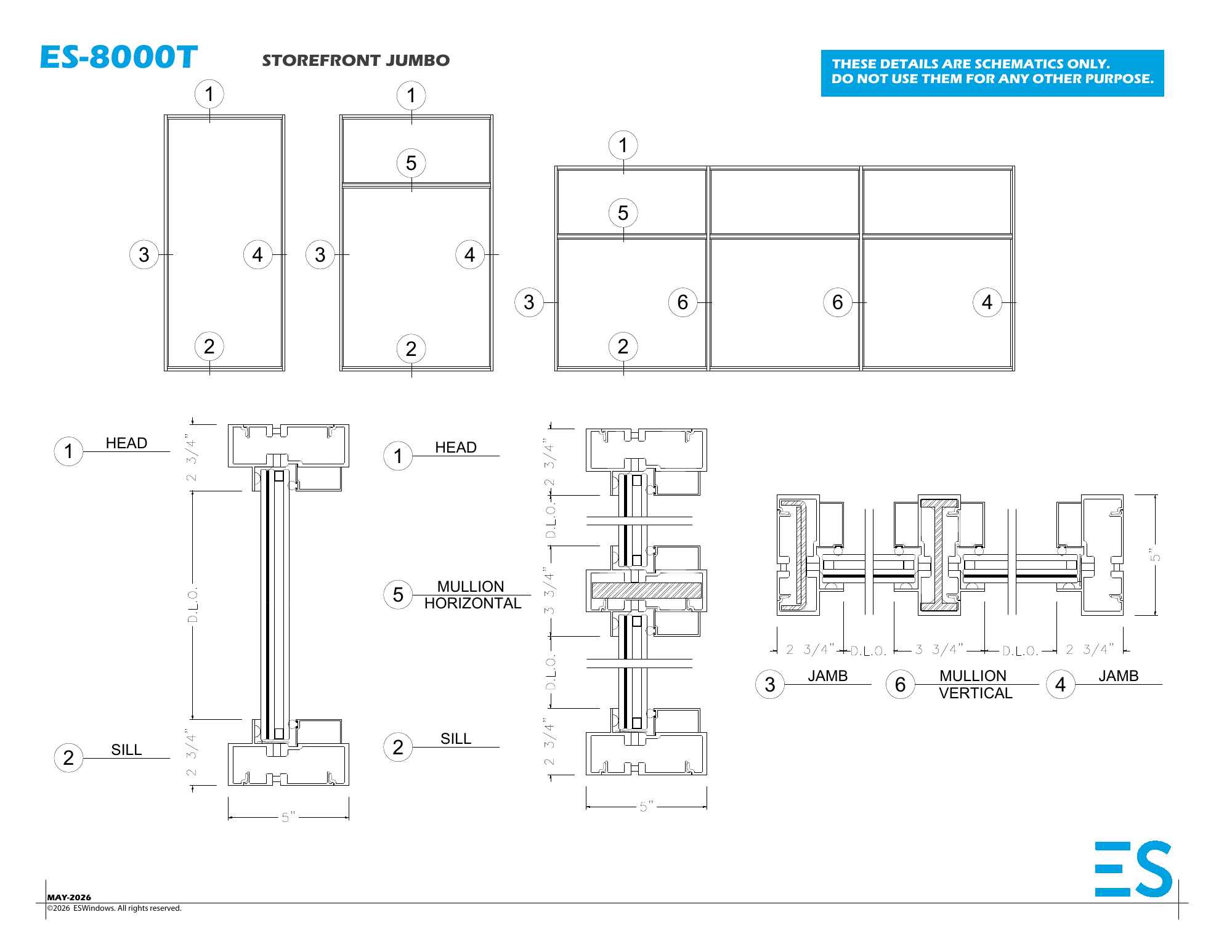

ES-8000T manufacturer schematic sheet 2: Jumbo configurations — Jumbo configurations p. 2
Jumbo storefront sections and reinforcement variations.

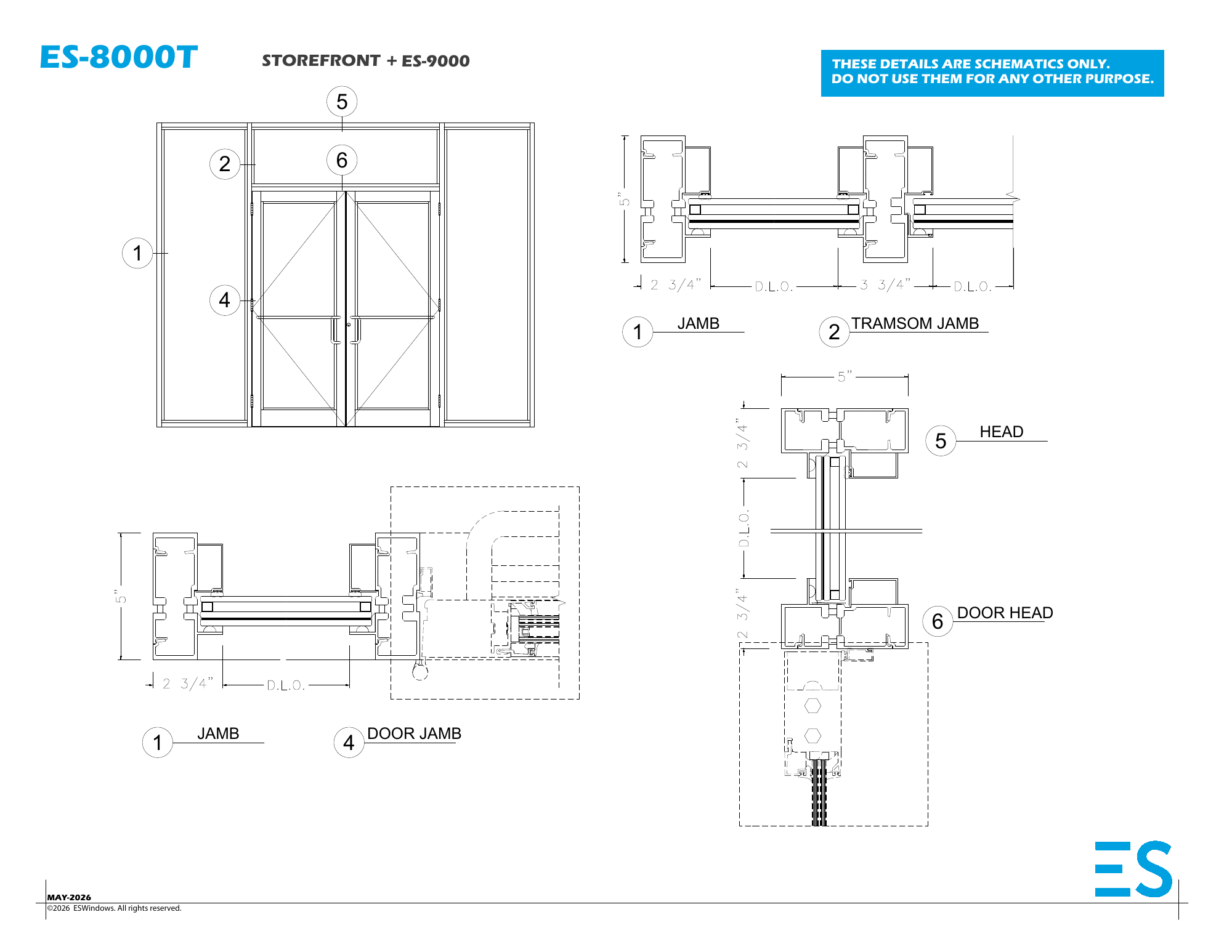

ES-8000T manufacturer schematic sheet 3: ES-8000T + ES-9000 — ES-8000T + ES-9000 p. 3
Double entrance doors with storefront sidelites and transom; head, jamb and sill interfaces.

Typical section dimensions
5″ depth · 2¾″ head / sill / jamb faces · 3¾″ intermediate / vertical mullion faces

Coordination
Manufacturer schematic sections for the specified systems. Opening sizes, glazing and anchorage follow the final elevations and opening schedule.

ES-8000T manufacturer references · May 2026Product data · 3 pages ↗Storefront details · 3 pages ↗

411 Meeting Street Specified systems

Entrance & terrace doors

Specified systems · technical summary

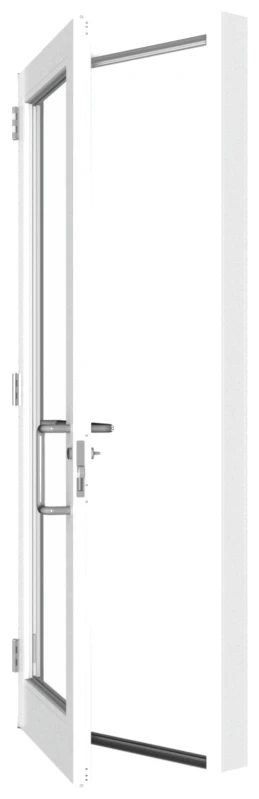

Ground-level entrance doors

ES-9000

Impact-rated swing doors with single, double, sidelite and transom configurations.

Frame / sightline: 5″ depth · 1¾″ or 2½″ sightline
Design loads: Single: +120 / −120 psf · Double: +90 / −90 psf
Water test pressure: 18 psf
Maximum size: Single 47″ W · Double 89″ W · 110½″ H
Glazing: 9/16″ laminated or 1 1/16″ insulating laminated
Hardware / thresholds: Stainless hardware · High or ADA thresholds

Preassembled leaf, weatherstripping and welded corner reinforcement. Manufacturer values depend on configuration; thresholds and storefront interfaces are detailed on sheet 3.

Supplied ES-9000 data & details · 6 pages · June 2021 ↗

Hotel terrace doors & sidelites

ES-46T

Thermally broken, out-swing balcony door with small- and large-missile impact ratings.

Frame depth: 4½″
Tested design loads: +100 / −120 psf
Water test pressure: 15 psf
Thresholds: 2¼″ standard · ½″ ADA option
Thermal performance*: U-value 0.44 · SHGC 0.21
Hardware / configuration: Multipoint locking · Sidelites and transoms available

*Published for clear insulating laminated SB 70 glazing. Values and limits vary by configuration.

ES Windows official product data ↗

Product illustrations are indicative. Listed ratings are manufacturer test values for the cited configurations.

411 Meeting Street Specified systems

Hotel windows & specialty openings

Specified systems · technical summary

Hotel windows · fixed configuration · Mark 3

ES-P300

Fully thermally broken system. Fixed windows are the project configuration; the product family also includes awning and casement units.

Design loads: +80 / −90 psf
Maximum tested panel: 57″ W × 96″ H
Impact: Small- and large-missile options
Thermal values*: U-value 0.38–0.40 · SHGC 0.126–0.275
Installation: Interior trim or receptor options
Glazing: Insulated / insulated-laminated; match the tested assembly

*Manufacturer simulations vary with glass option. Shown: the project’s Mark 3 window from the ES proposal drawings, glazed with GL-1 insulating laminated glass.

Supplied ES-P300 data & details · 6 pages · February 2022 ↗
ES-P300 proposal drawings · 7 sheets · 9 Oct 2026 →

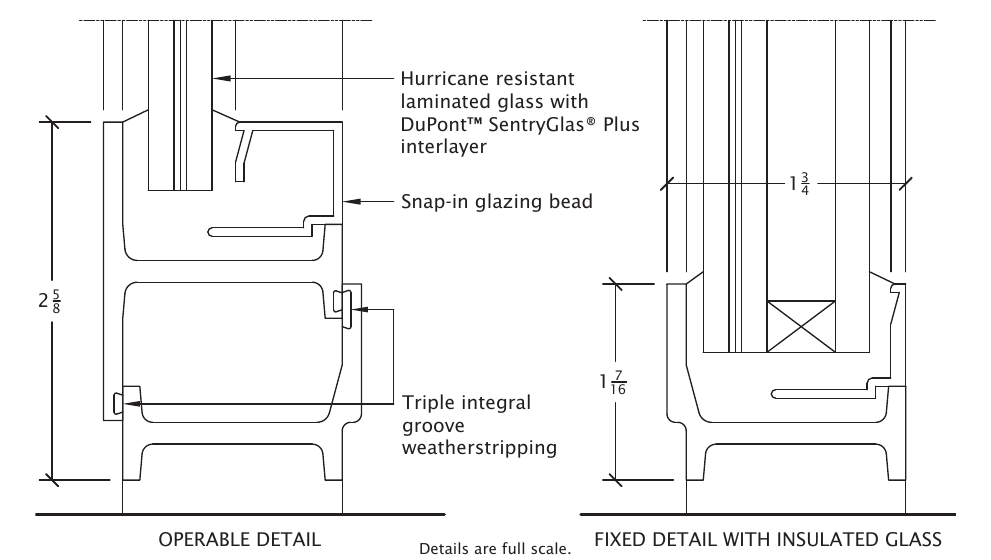

Main entrance doors · front elevation

Hope’s Jamestown175

Custom hot-rolled steel windows and swing-out doors with narrow profiles and fusion-welded corners.

Window pressure rating: Up to +80 / −80 psf
Glazing capacity: Laminated / insulating glass up to 1 7/32″
Window configurations: Fixed, side-hung-out casement and project-out
Door configurations: Single / double swing-out
Seals / hardware: Triple weatherstripping · Brass or bronze hardware
Finish: Hope’s Power of 5 finishing system

April 2015 reference literature. The ±80 psf value is the published window rating and is not a blanket door rating.

Supplied Jamestown175 data & details · 14 pages ↗

Full manufacturer details remain available through the source links.

411 Meeting Street Specified systems

ES-P300 proposal drawings

ES Windows · 9 October 2026 · 7 sheets

ES Windows drew the hotel windows as a fixed ES-P300 system. The set is built around one typical opening, Mark 3: a pair of fixed units with a historic exterior profile, divided-lite muntins and GL-1 insulating laminated glass.

System: ES-P300 fixed
Typical opening: Mark 3
Glass: GL-1
Sealants: Black
Divided lites: 4 × 5
Custom profiles: 4

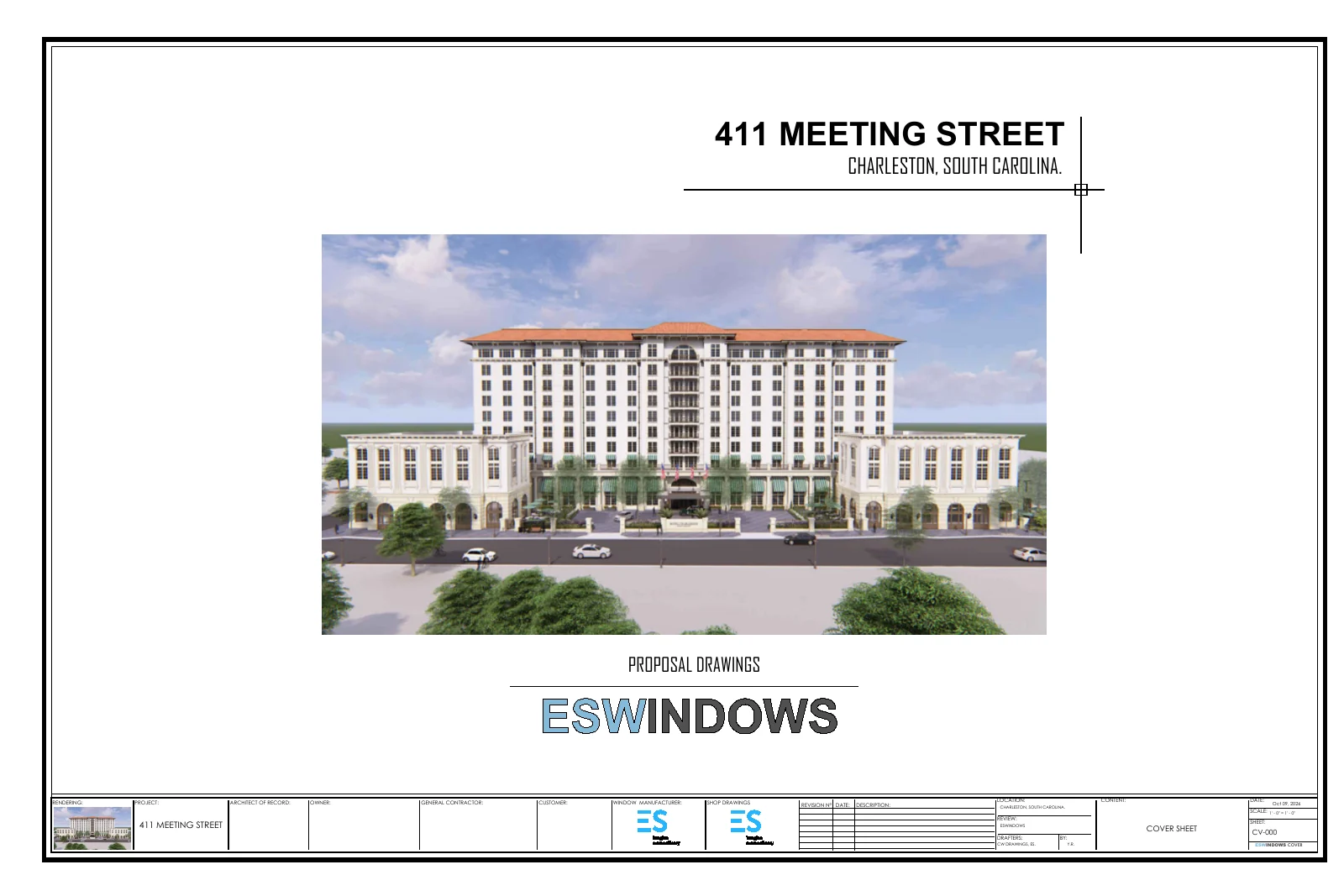

CV-000Cover sheet
Project rendering and title block

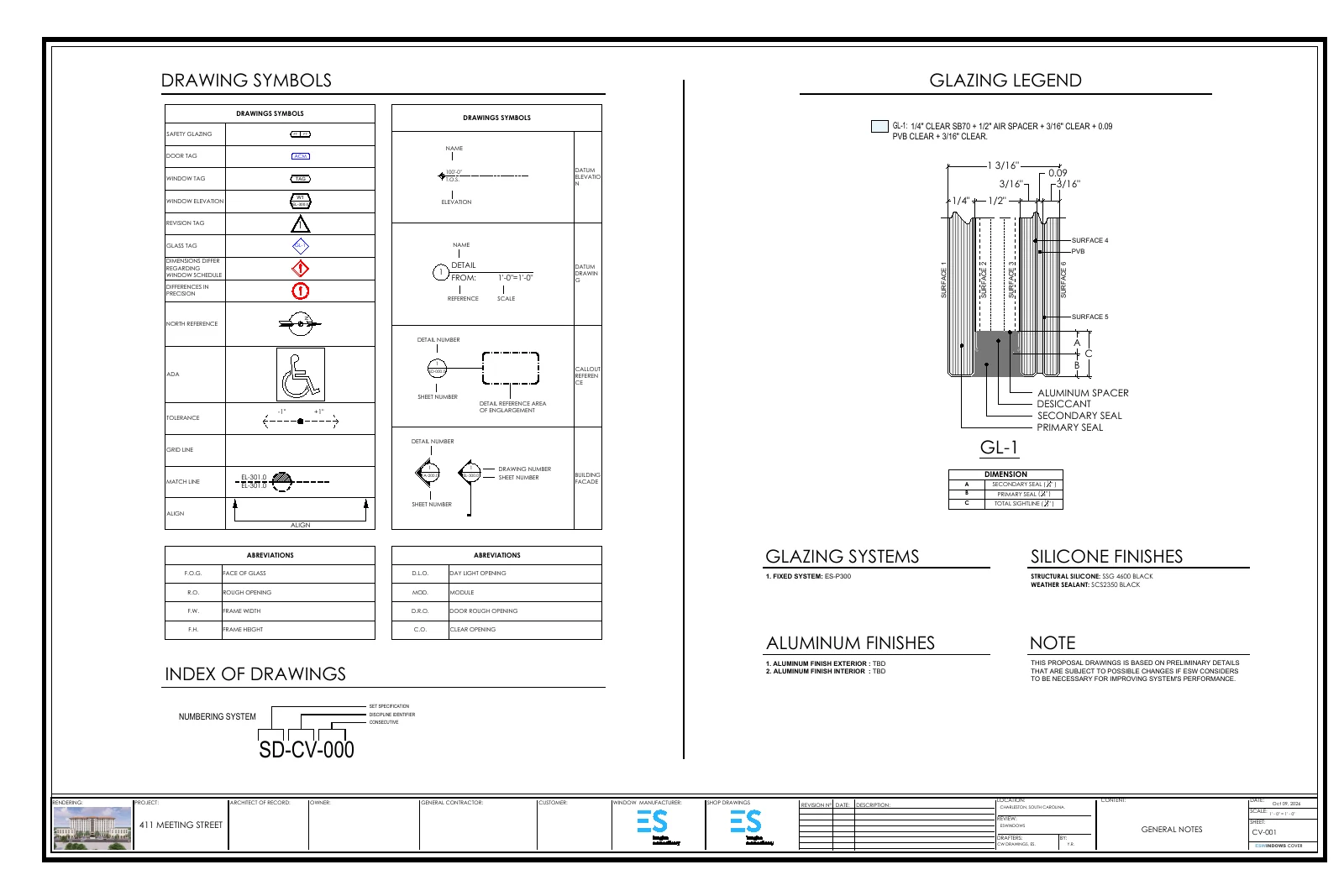

CV-001General notes
Symbols, abbreviations, GL-1 glazing legend, sealants

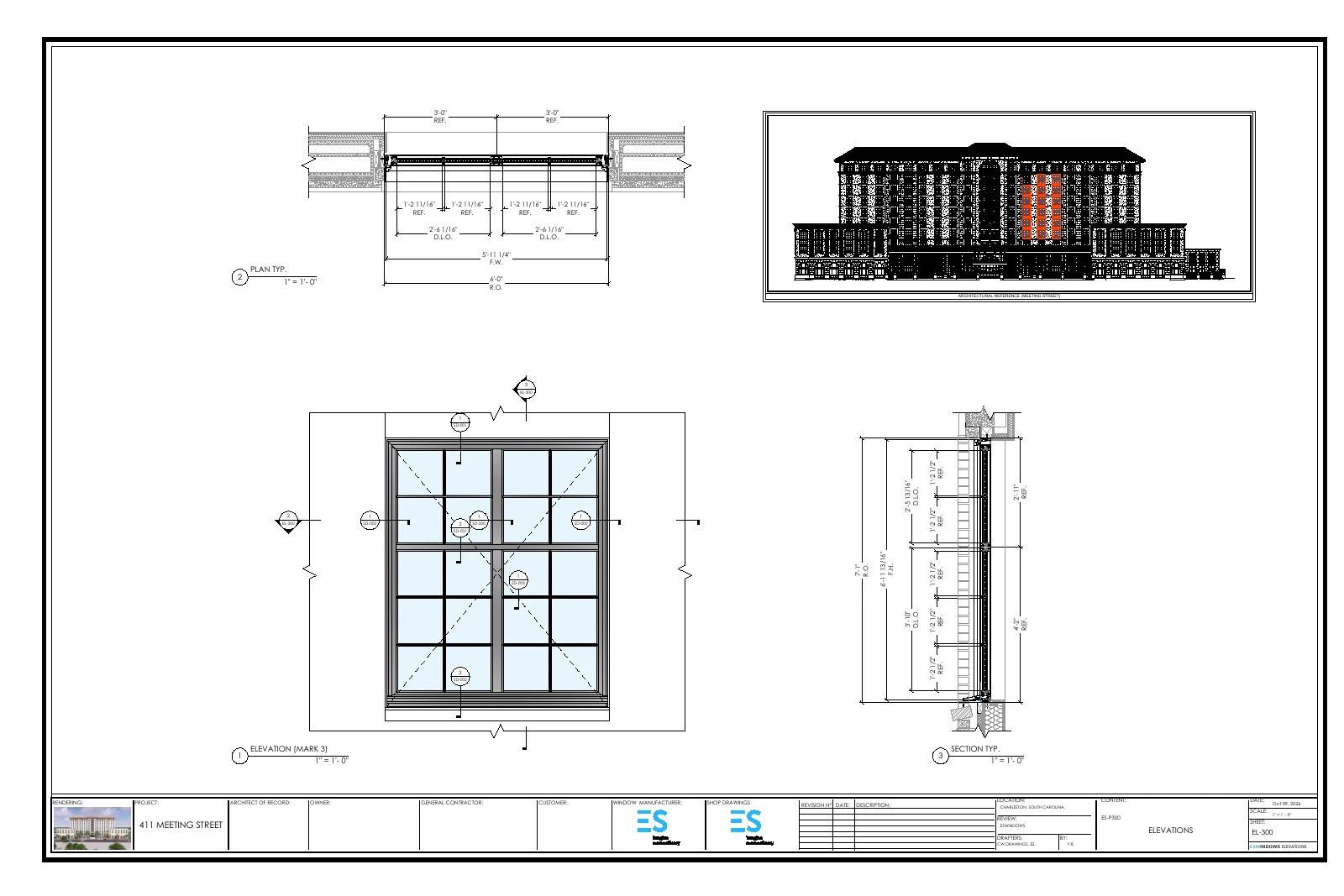

EL-300Elevations
Mark 3 elevation, typical plan and section, tower location

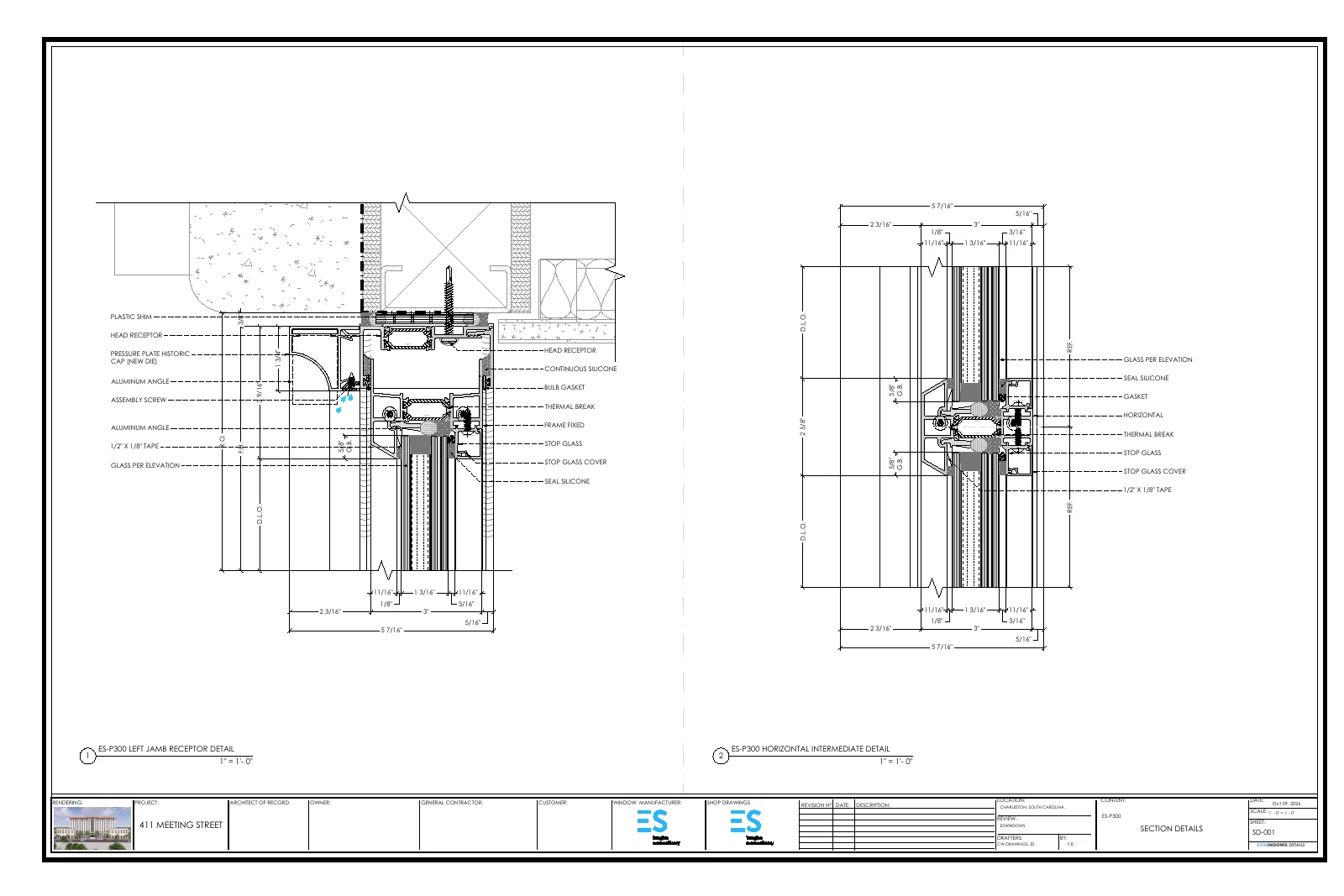

SD-001Section details
Head receptor, horizontal intermediate

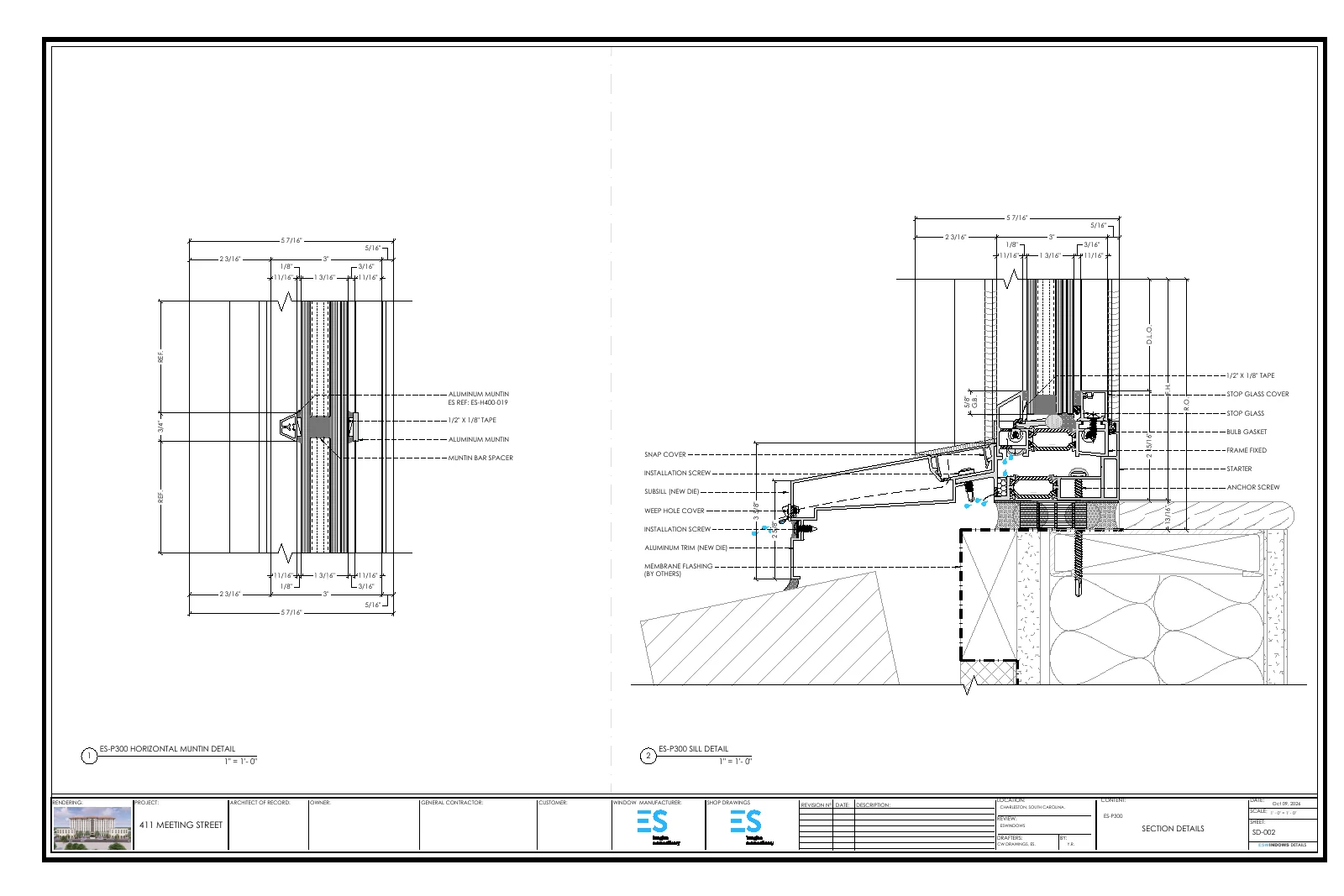

SD-002Section details
Horizontal muntin, sill

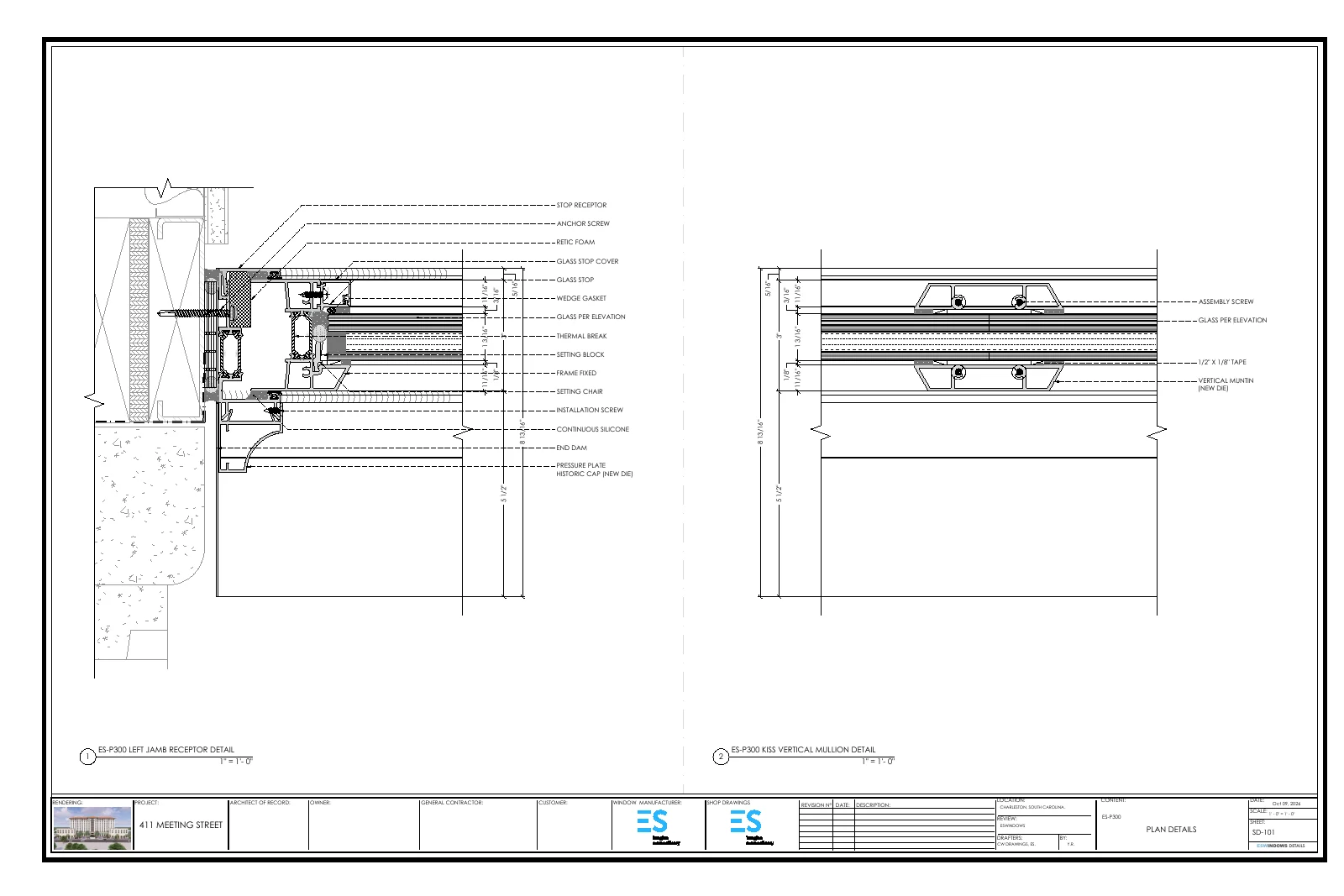

SD-101Plan details
Left jamb receptor, kiss vertical mullion

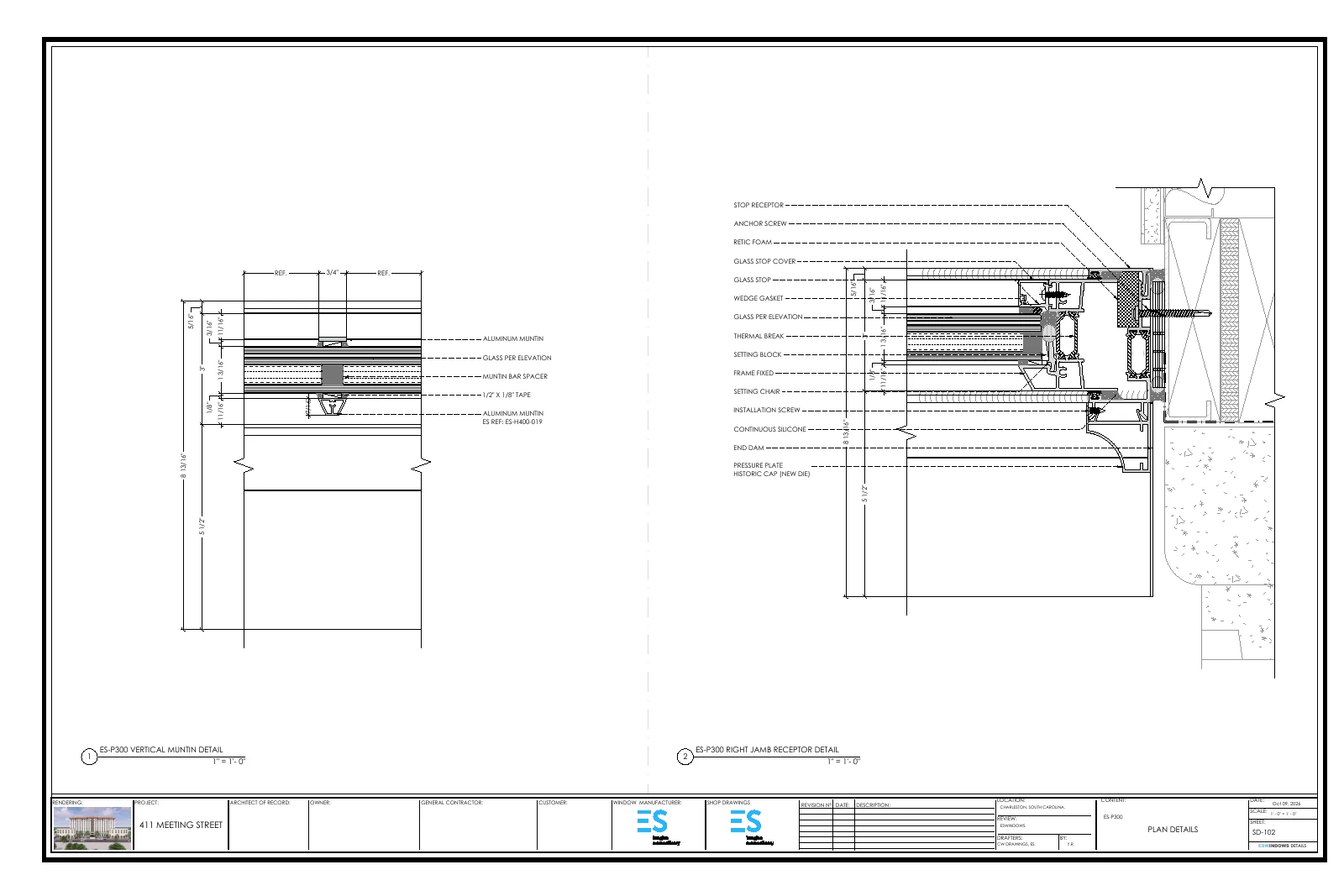

SD-102Plan details
Vertical muntin, right jamb receptor
Full setPDF · 7 sheets ↗

ES Windows · drawn by CW Drawings, ES · 9 October 2026Full drawing set · 7 sheets ↗

411 Meeting Street ES-P300 proposal drawings

Typical hotel window · Mark 3

EL-300 · ES-P300 fixed · select a detail bubble

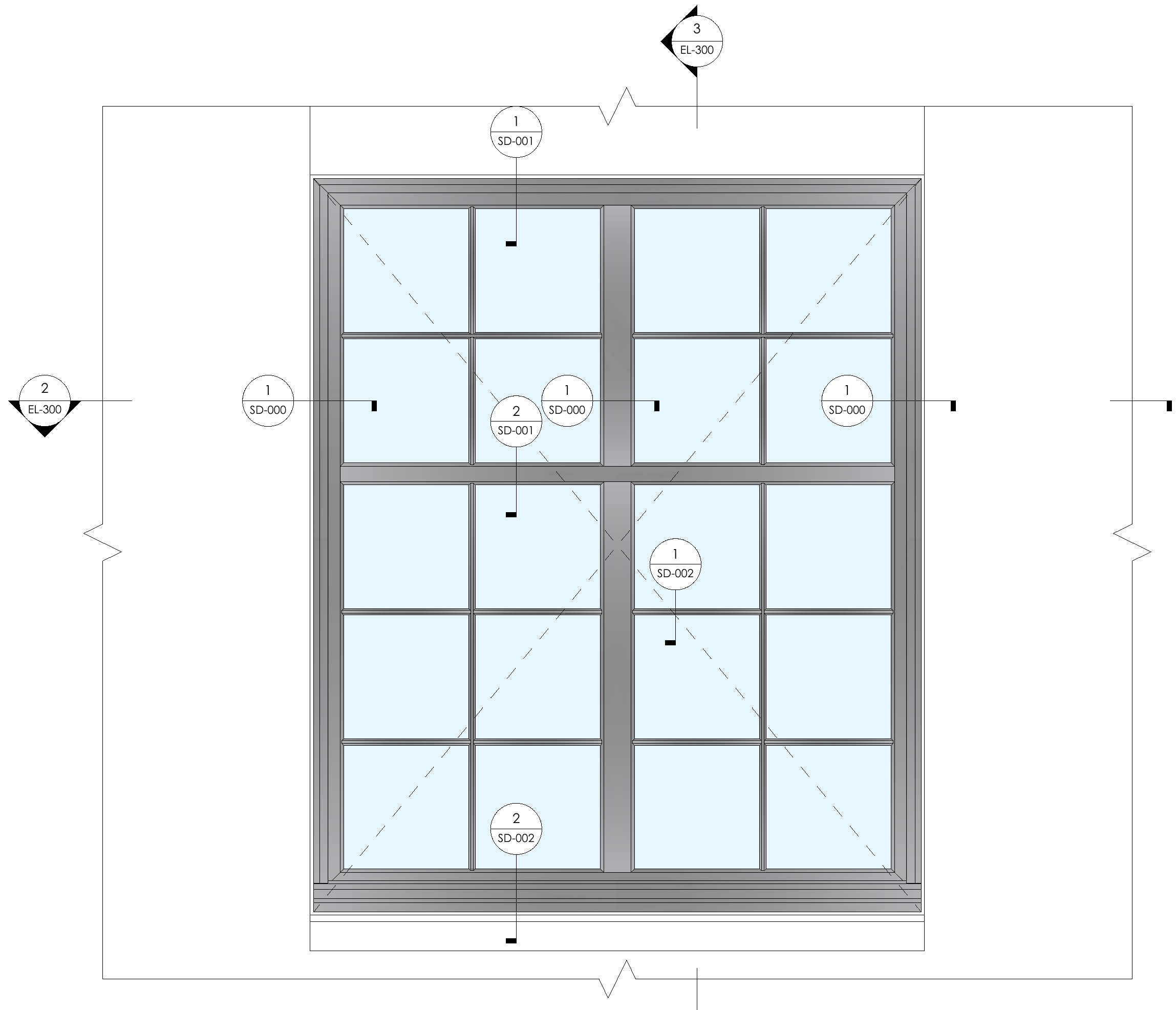

ES-P300 Mark 3 elevation: two fixed units with a 4 × 5 muntin grid and detail callouts — EL-300 / 1 · Elevation, Mark 3 · sheet ↗

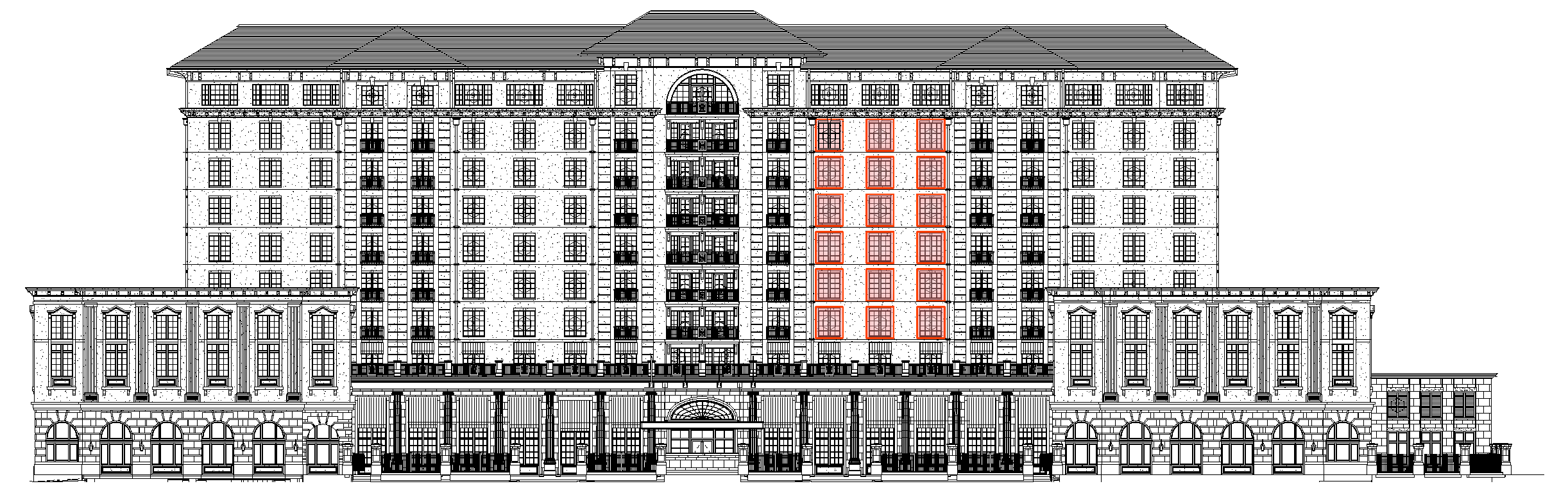

Architectural reference of the Meeting Street elevation with the Mark 3 openings highlighted — Mark 3 openings, highlighted on the Meeting Street elevation of the hotel tower

Rough opening: 6′-0″ W × 7′-1″ H
Frame: 5′-11¼″ W × 6′-11 13/16″ H
Configuration: Two fixed units, kiss mullion
Lite width: 2′-6 1/16″ D.L.O. each
Lite heights: Upper 2′-5 13/16″ · lower 3′-10″ D.L.O.
Divided lites: 4 wide × 5 high, ¾″ muntins

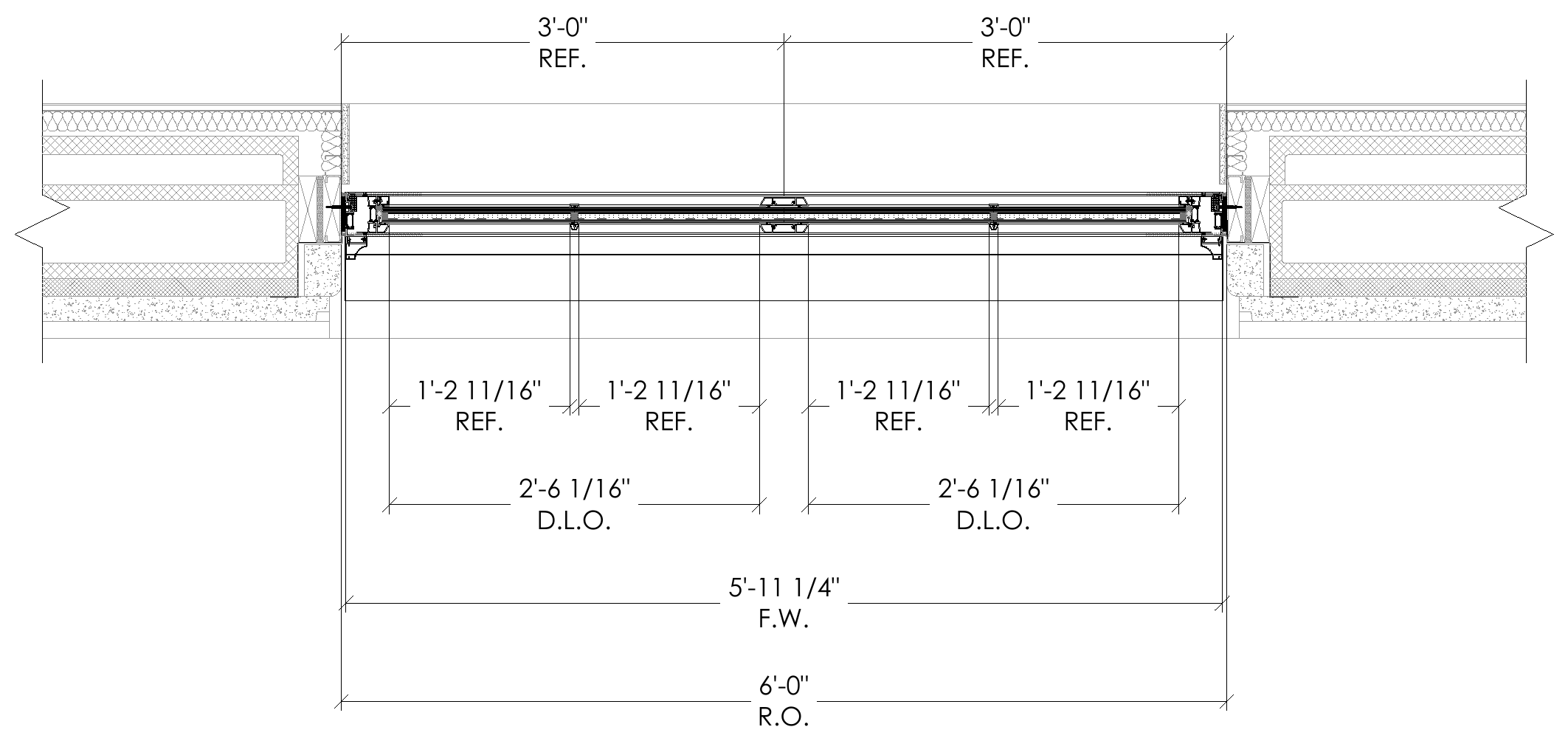

Mark 3 typical plan with daylight openings and rough opening — EL-300 / 2 · Plan, typical

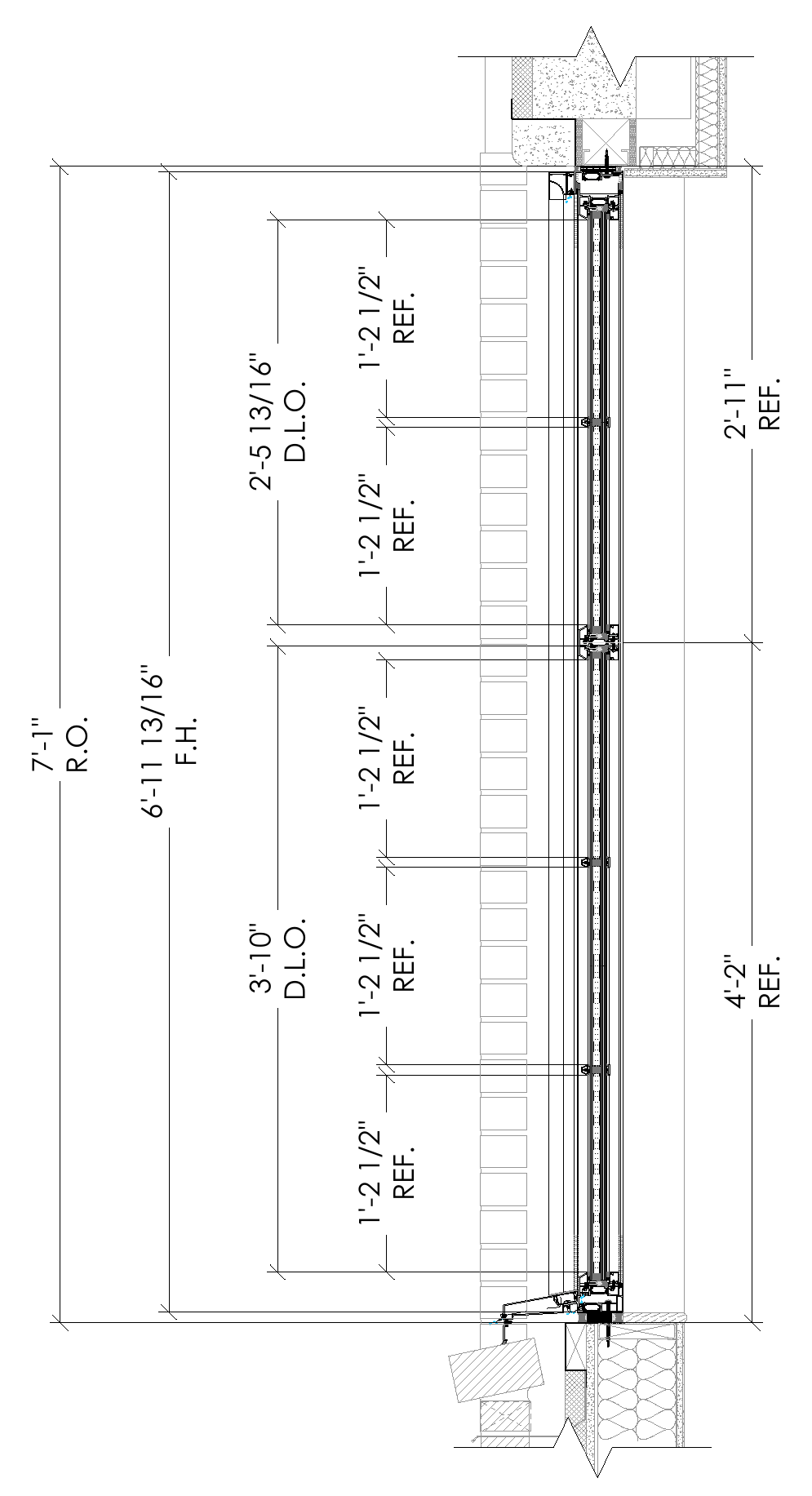

Mark 3 typical section with frame height and daylight openings — EL-300 / 3 · Section

1SD-001Head
1SD-000Jamb / kiss mullion ×3
2SD-001Horizontal intermediate
1SD-002Horizontal muntin
2SD-002Sill

Tap a detail bubble on the elevation to open that detail.

411 Meeting Street ES-P300 proposal drawings

Glazing GL-1 & materials

CV-001 · general notes

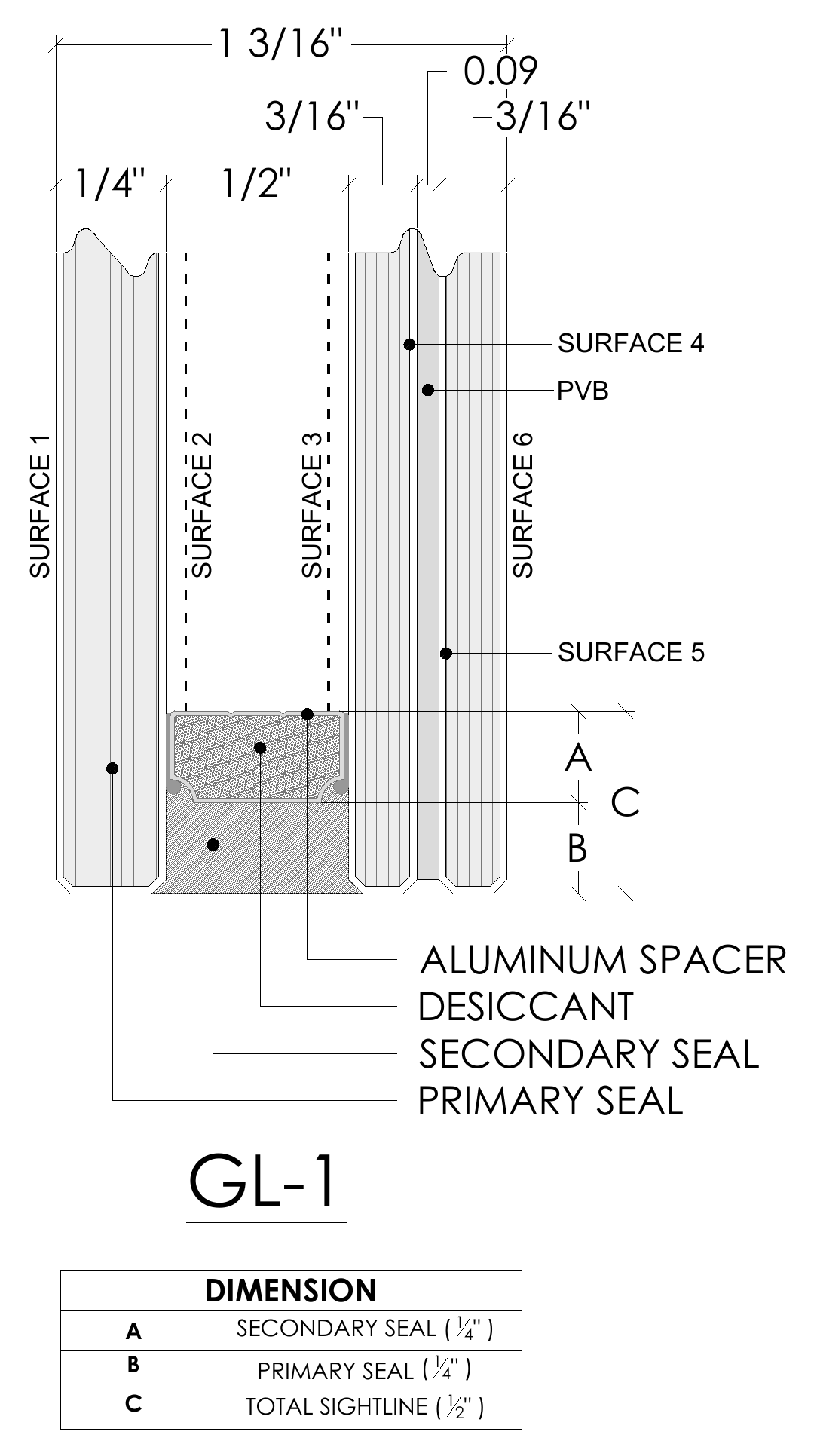

GL-1 insulating laminated glass cross-section with surfaces, spacer, seals and dimensions — CV-001 · Glazing legend, GL-1

GL-1 · outside to inside

1/4″ clearSB70 low-e, outboard lite
1/2″ air spaceAluminum spacer, desiccant, primary and secondary seal
3/16″ clearLaminated inboard lite
0.090″ PVBClear interlayer
3/16″ clearLaminated inboard lite

1 3/16″ insulating laminated unit, as drawn

Edge seal
A	Secondary seal	¼″
B	Primary seal	¼″
C	Total sightline	½″

System, sealants & finishes

Glazing system: ES-P300 fixed
Structural silicone: SSG 4600 black
Weather sealant: SCS2350 black
Thermal break: Ensinger 2631, 32 mm
Fasteners: #8 × 5/8″ pan head

Thermal break and fastener from the detail linework (SD sheets).

ES Windows · CV-001 general notes · 9 October 2026Full drawing set · 7 sheets ↗

411 Meeting Street ES-P300 proposal drawings

Head, intermediate & sill

SD-001 · SD-002 · section details

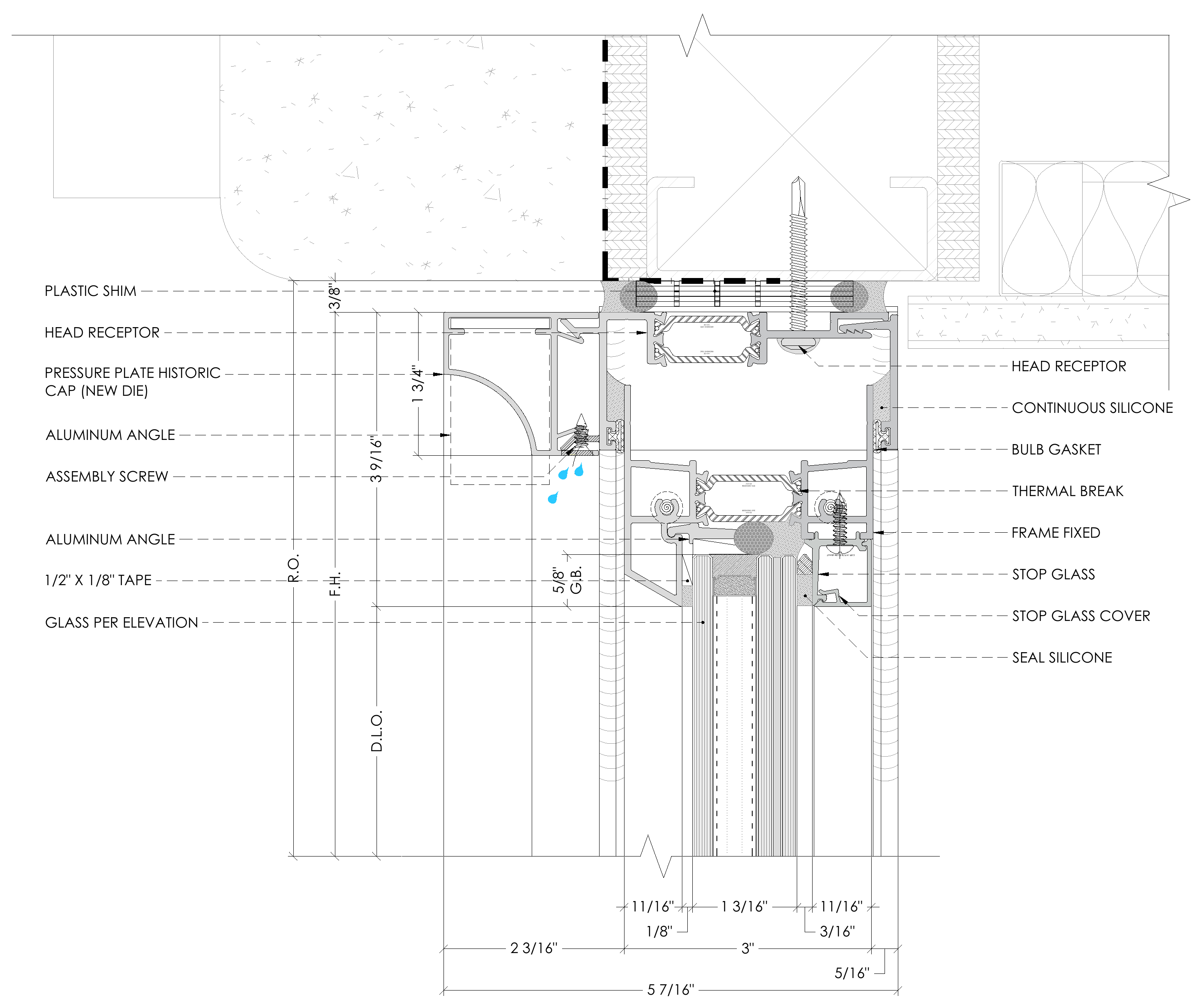

SD-001 / 1

Head

Head receptor with a 3/8″ plastic shim to the opening
Pressure plate historic cap (new die) on aluminum angles outside
Thermal break, bulb gasket and continuous silicone

Frame: 3″
Overall: 5 7/16″
Glass bite: 5/8″
Head shim: 3/8″

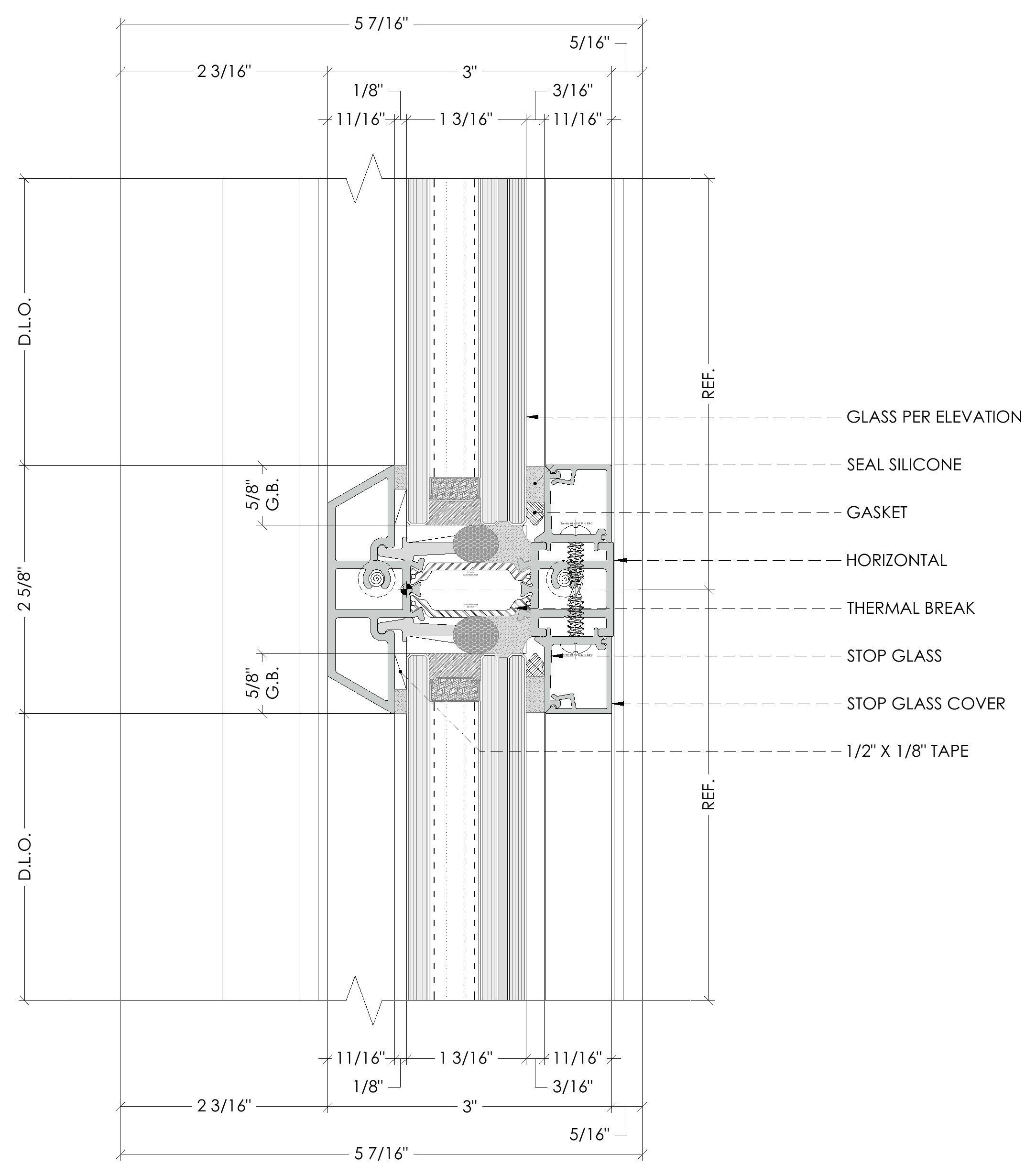

SD-001 / 2

Horizontal intermediate

Divides the upper and lower lites
Gasket and seal silicone outside, stop glass and cover inside
Thermal break through the horizontal

Sightline: 2 5/8″
Glass bite: 5/8″
Glass: 1 3/16″

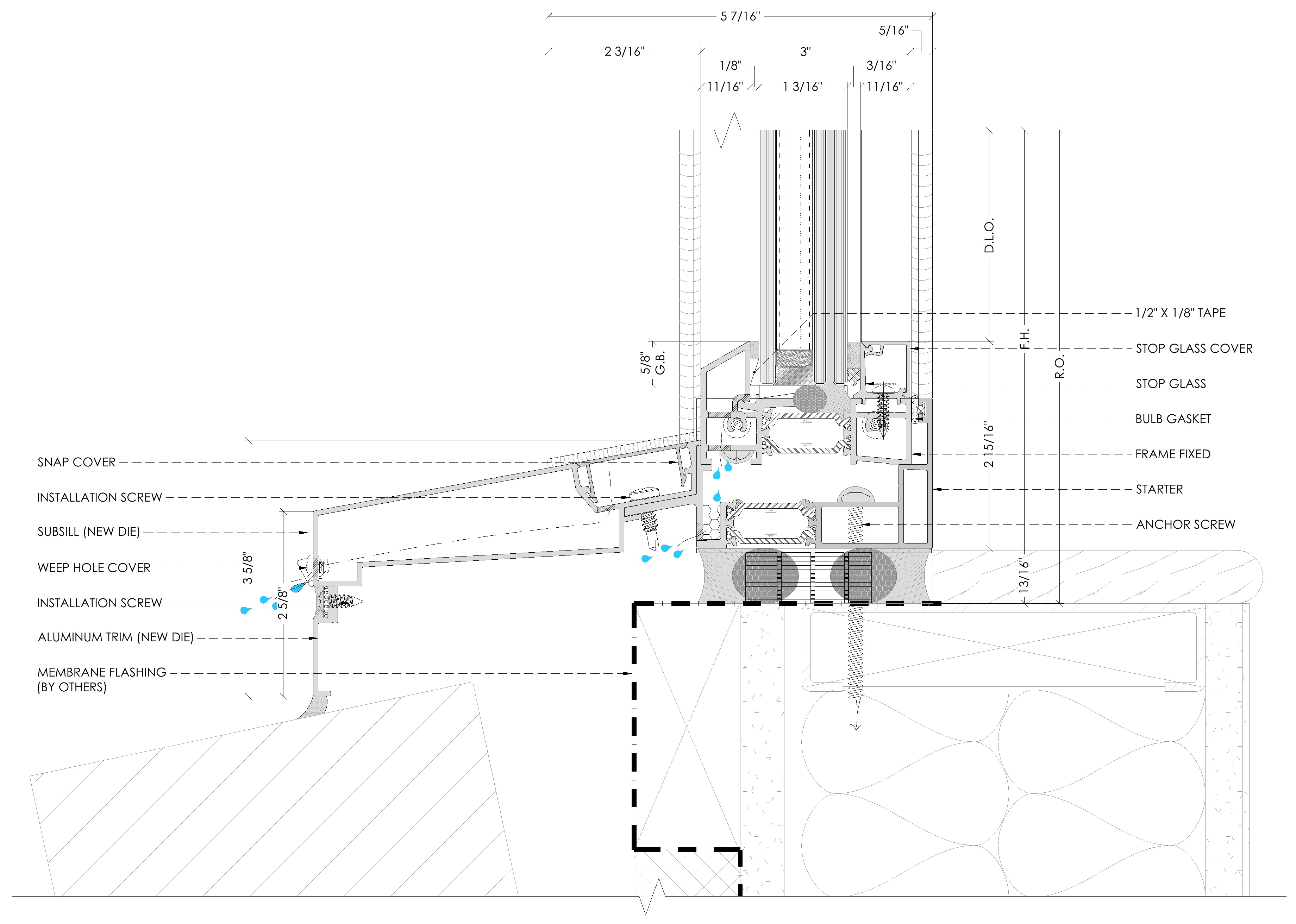

SD-002 / 2

Sill

Subsill (new die) with snap cover on a starter, anchored through
Weep path to the exterior through the weep-hole cover
Aluminum trim (new die); membrane flashing by others

Sill shim: 13/16″
Glass bite: 5/8″
Overall: 5 7/16″

Select a drawing to enlarge it. Four new dies: historic cap, subsill, aluminum trim, vertical muntin.Full drawing set · 7 sheets ↗

411 Meeting Street ES-P300 proposal drawings

Jambs, kiss mullion & muntins

SD-101 · SD-102 · SD-002 · plan details

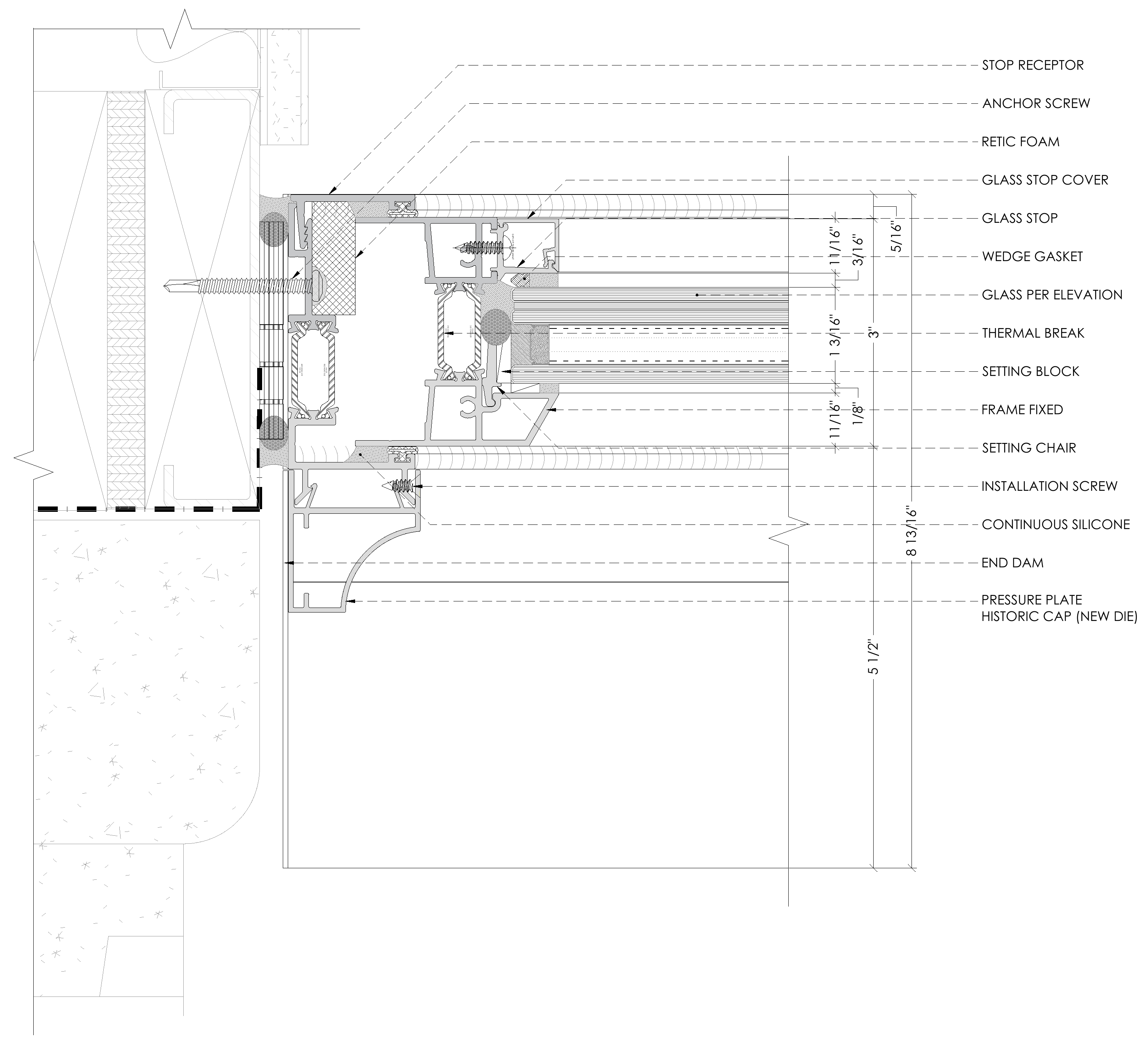

SD-101 / 1

Jamb receptor

Stop receptor anchored to the opening; retic foam and continuous silicone at the perimeter
End dam and pressure plate historic cap (new die) outside
Right jamb, SD-102 / 2, is the mirror image

Frame: 3″
Glass: 1 3/16″

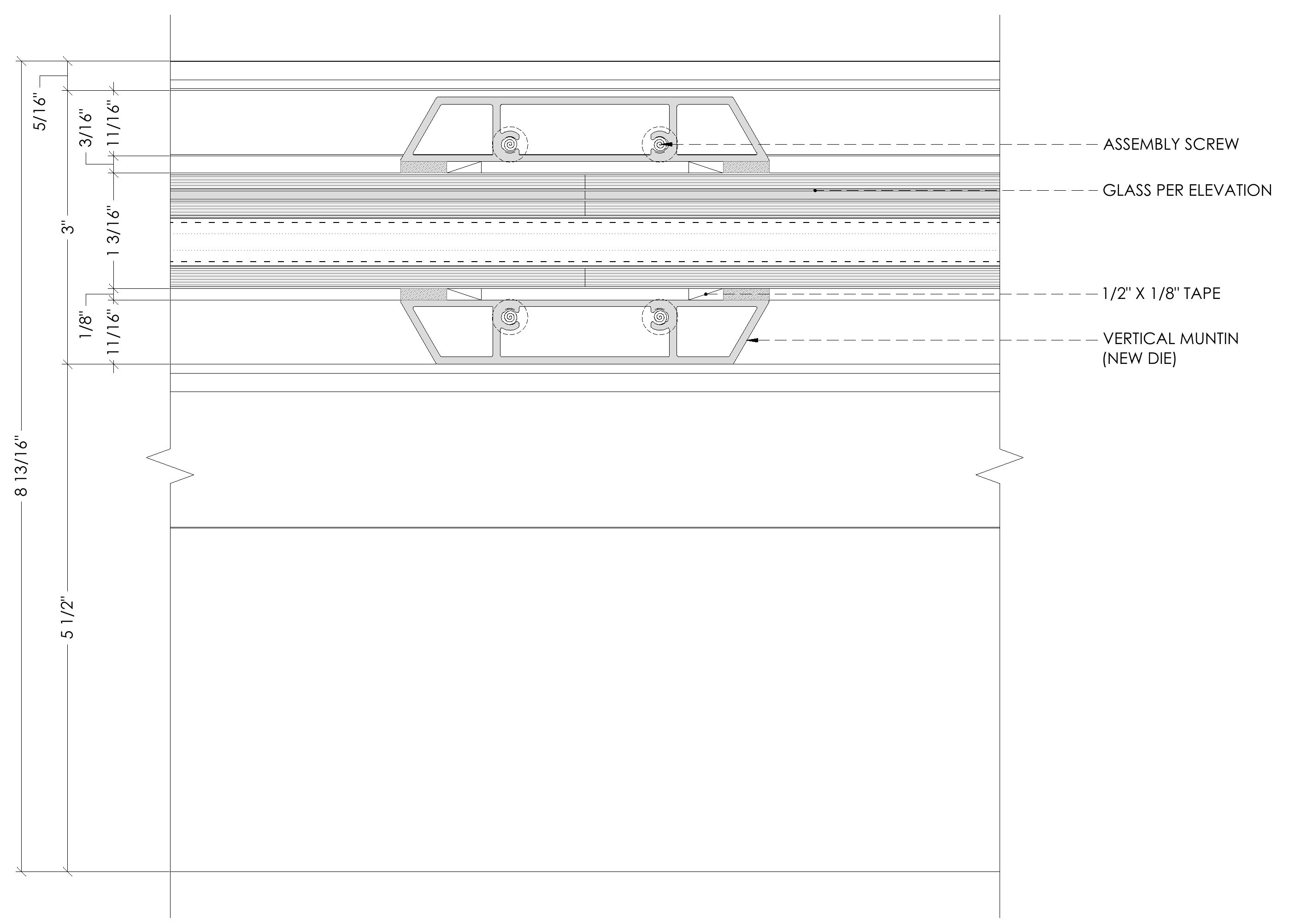

SD-101 / 2

Kiss vertical mullion

The two fixed units meet at a kiss mullion, held with assembly screws
Vertical muntin (new die) covers the joint inside and out

Frame: 3″ each unit

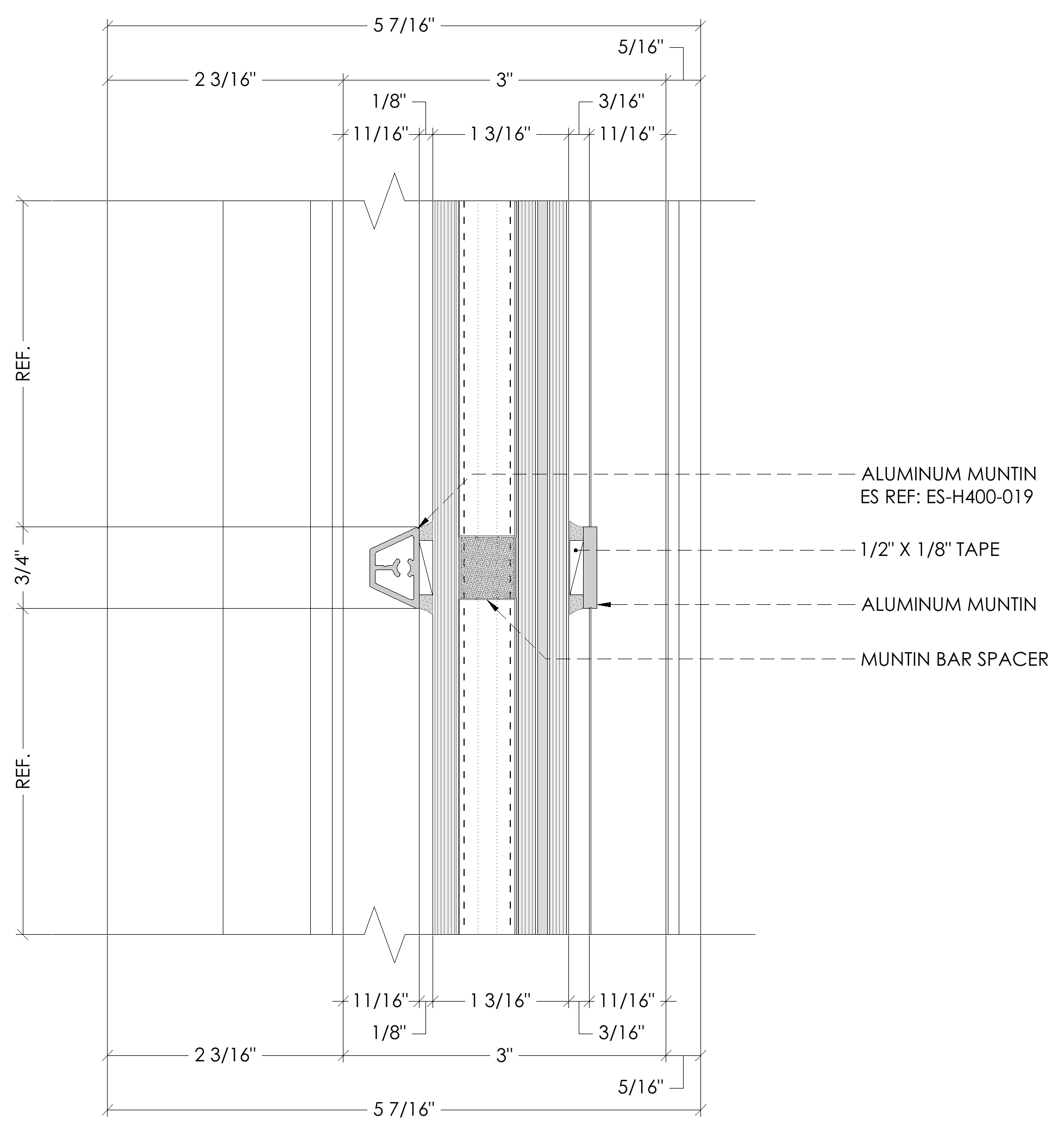

SD-002 / 1

Horizontal muntin

¾″ aluminum muntins on both faces, ES-H400-019
Muntin bar spacer inside the unit lines up with them

Muntin: ¾″
Tape: 1/2″ × 1/8″

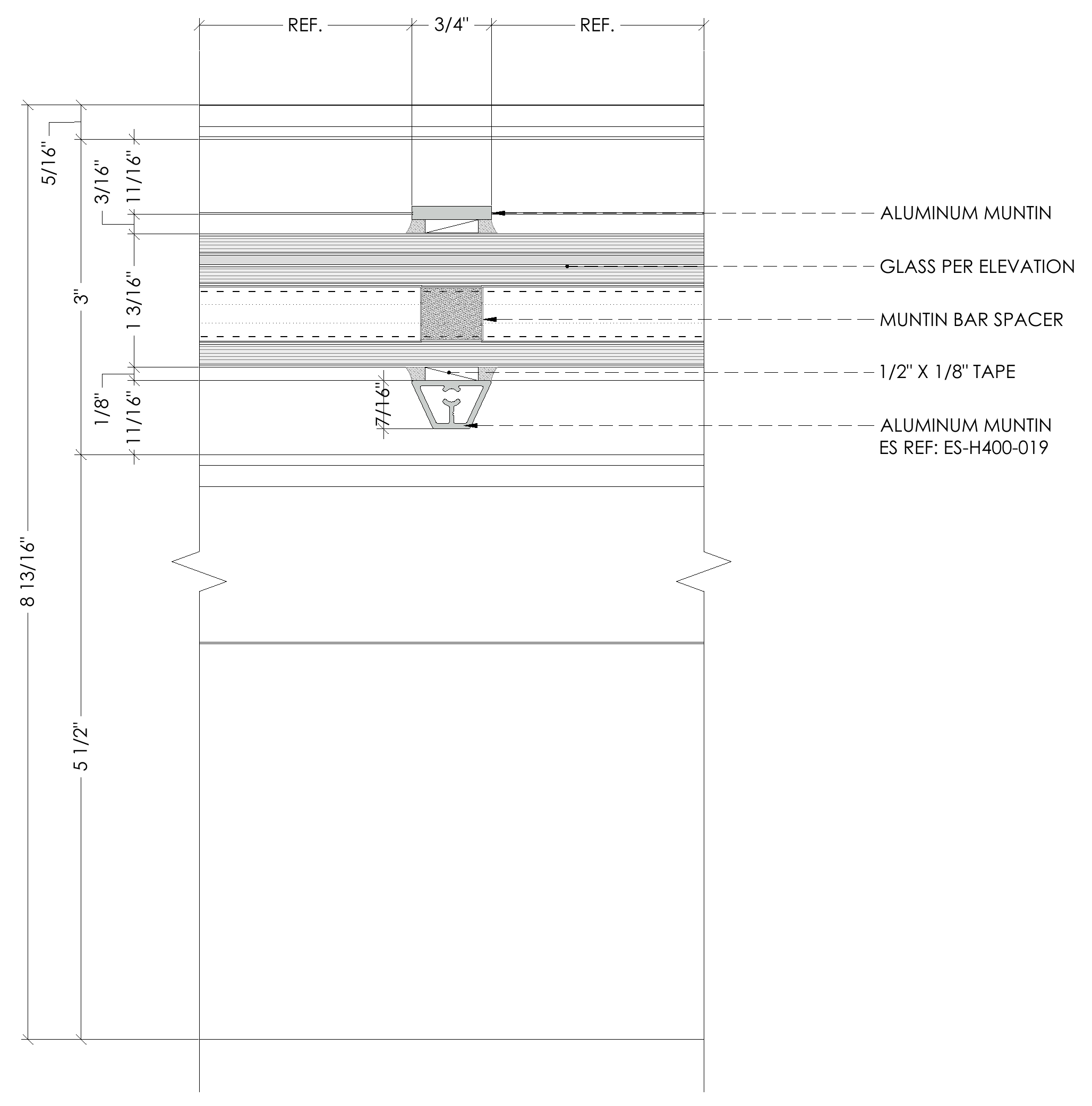

SD-102 / 1

Vertical muntin

Same ¾″ profile and spacer bar as the horizontal muntin
Gives the 4 × 5 divided-lite appearance

Muntin: ¾″
Tape: 1/2″ × 1/8″

Plan details from SD-101 and SD-102; the horizontal muntin is SD-002 / 1. Select a drawing to enlarge it.Full drawing set · 7 sheets ↗

411 Meeting Street ES-P300 proposal drawings

Drawing check

1CG review of the 9 October 2026 set · everything coordinates

Checked against the drawings

Width
Rough opening 6′-0″ less frame 5′-11¼″ leaves ¾″: 3/8″ at each jamb.
Height
Rough opening 7′-1″ less frame 6′-11 13/16″ leaves 1 3/16″: the 3/8″ head shim (SD-001) plus the 13/16″ sill (SD-002).
Module
Plan 3′-0″ + 3′-0″ = 6′-0″ and section 2′-11″ + 4′-2″ = 7′-1″, both equal to the rough opening.
Unit size
Each unit is about 35⅝″ × 83 13/16″ (half the frame width; derived), inside the ES-P300 57″ × 96″ maximum tested panel.
Glass
GL-1 is drawn at 1 3/16″, the glass dimension in the head, intermediate, sill and jamb details, with a 5/8″ bite throughout.
Muntins
One ¾″ profile, ES-H400-019, horizontal and vertical, on both faces with a spacer bar in the unit: the 4 × 5 pattern of the elevation.
Detail callouts
Head, intermediate, muntin and sill bubbles on EL-300 resolve to SD-001 and SD-002; jamb and kiss mullion to SD-000.
Profiles
Historic cap, subsill, aluminum trim and vertical muntin are drawn as new dies, so the exterior follows the historic profile.

1CG check of the ES Windows ES-P300 proposal drawings, 9 October 2026.Full drawing set · 7 sheets ↗

411 Meeting Street ES-P300 proposal drawings

Cost context for bid discussion

1CG planning view · September 2026

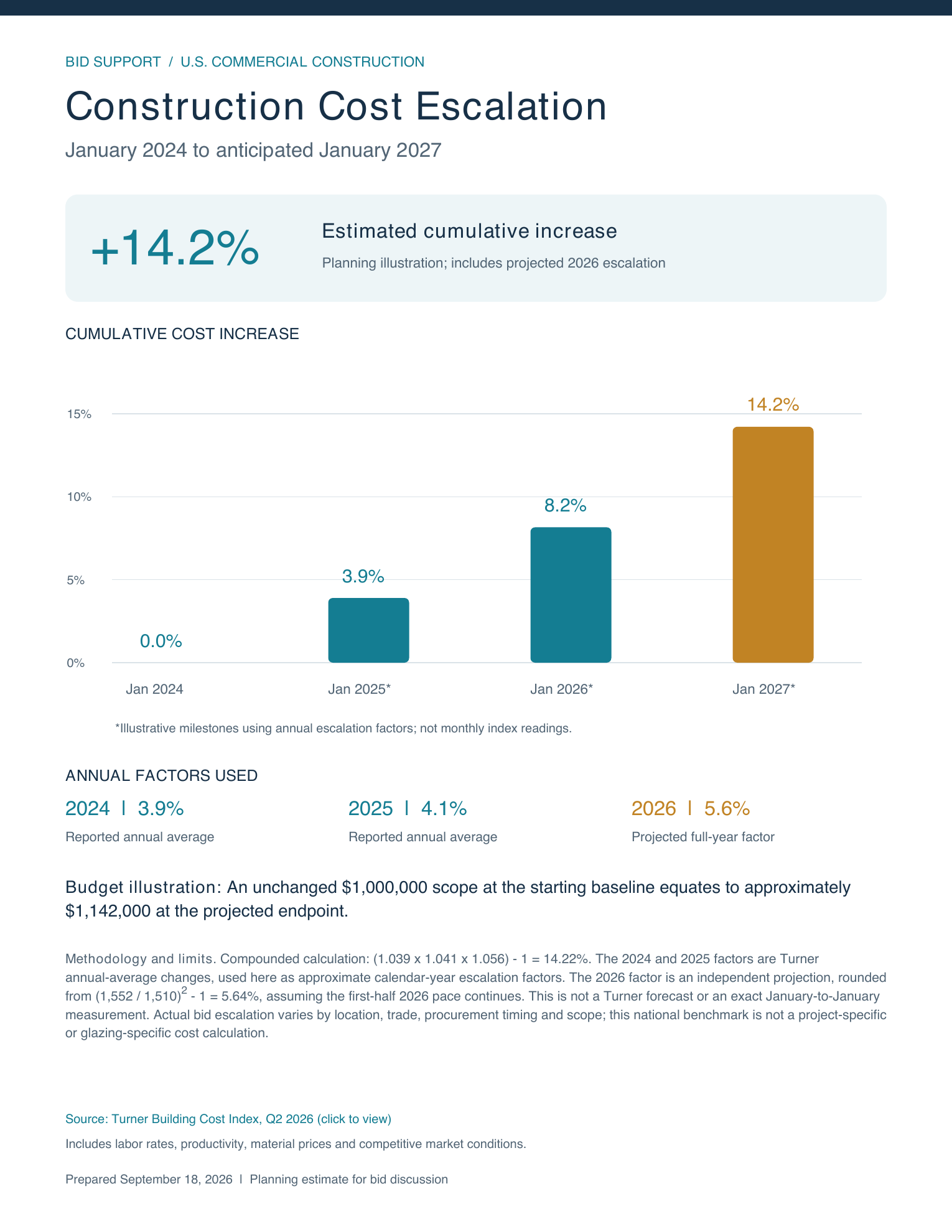

Construction cost escalation benchmark from January 2024 through January 2027

411 Meeting Street · 1CG takeaway

+7%

Reported change in our square-foot price

The project-specific square-foot price has moved up approximately 7%.

National planning benchmark

+14.2%

Cumulative construction-cost increase from January 2024 through January 2027. This is context for planning, not the project’s quoted price.

Source graphic: Turner Building Cost Index, Q2 2026.

411 Meeting Street Budget context

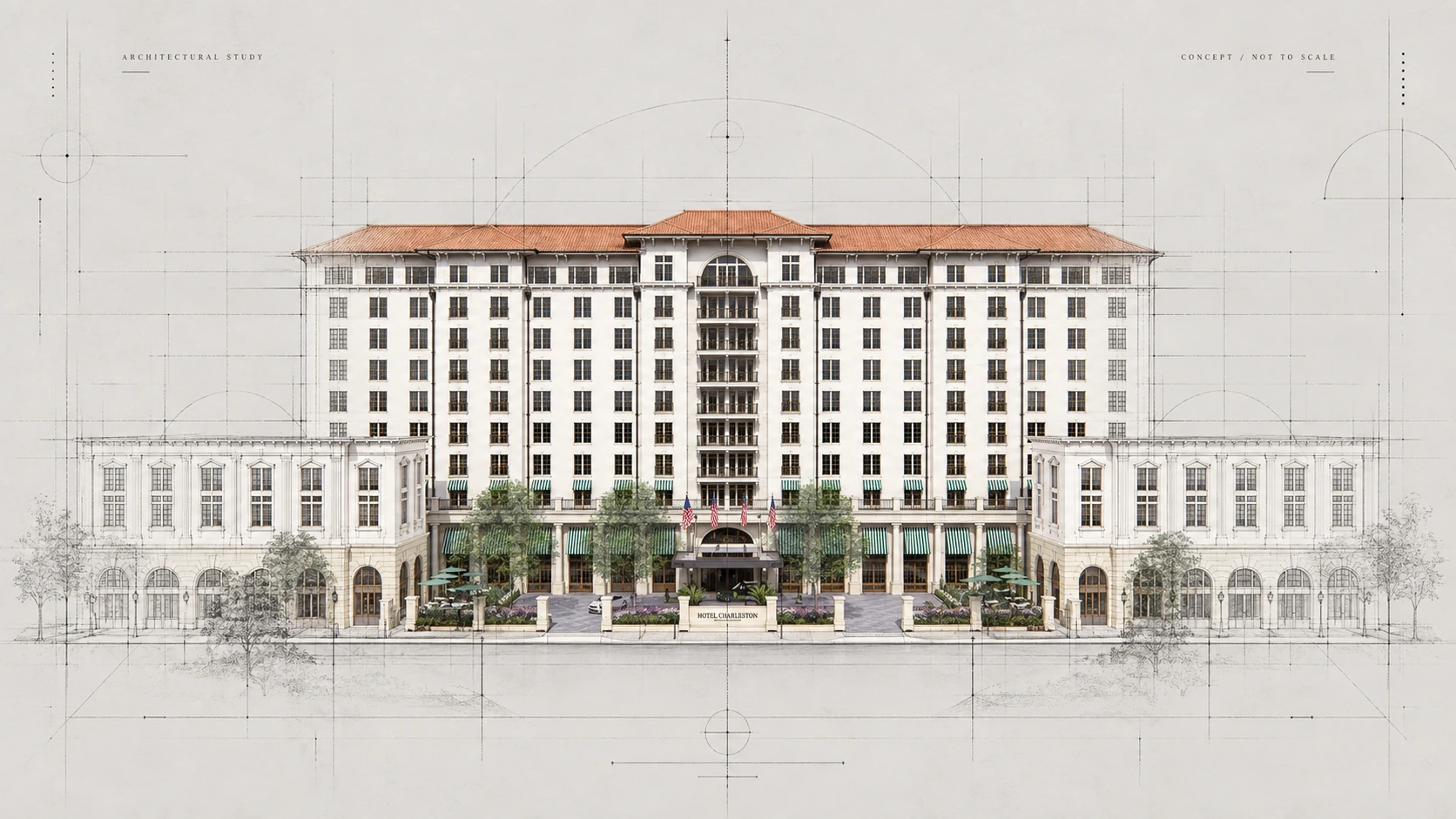

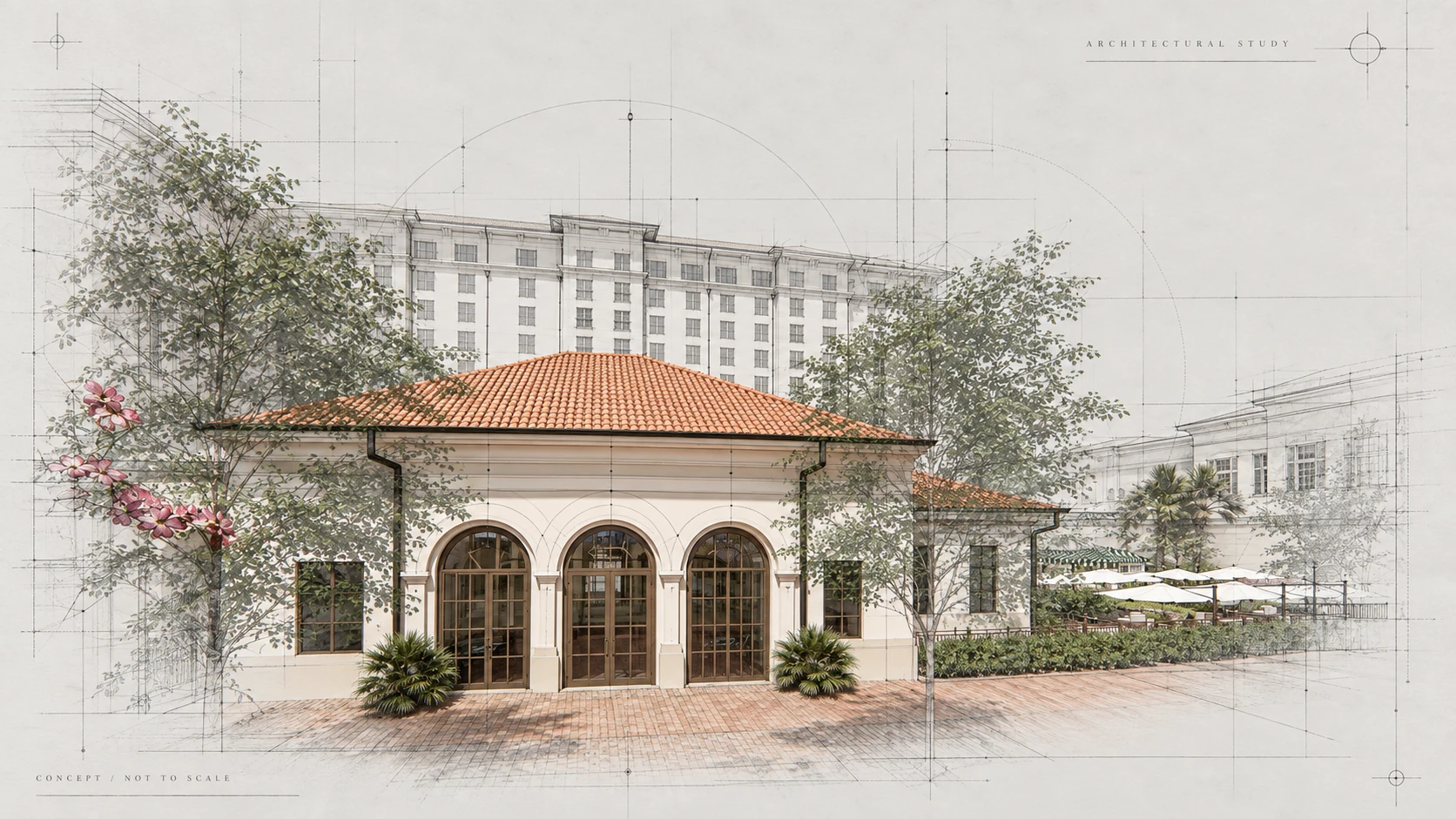

Front elevation

Specified opening systems · locations

Swipe the drawing horizontally to see all marked openings.

1

ES-P300

Hotel fixed windows · Mark 3 drawings

2

ES-8000T

Ground-level storefront

3

Hope’s Jamestown175

Ground-level entrance doors

System locations shown on the architectural studies; opening assignments follow the final elevations and opening schedule.

ES-46T terrace doors and sidelites occur at the hotel terrace levels; the studies shown here mark the ground-level and window systems. ES-7525 is carried as ground-level alternate pricing; ES-8000T is the basis of design.

411 Meeting Street System locations

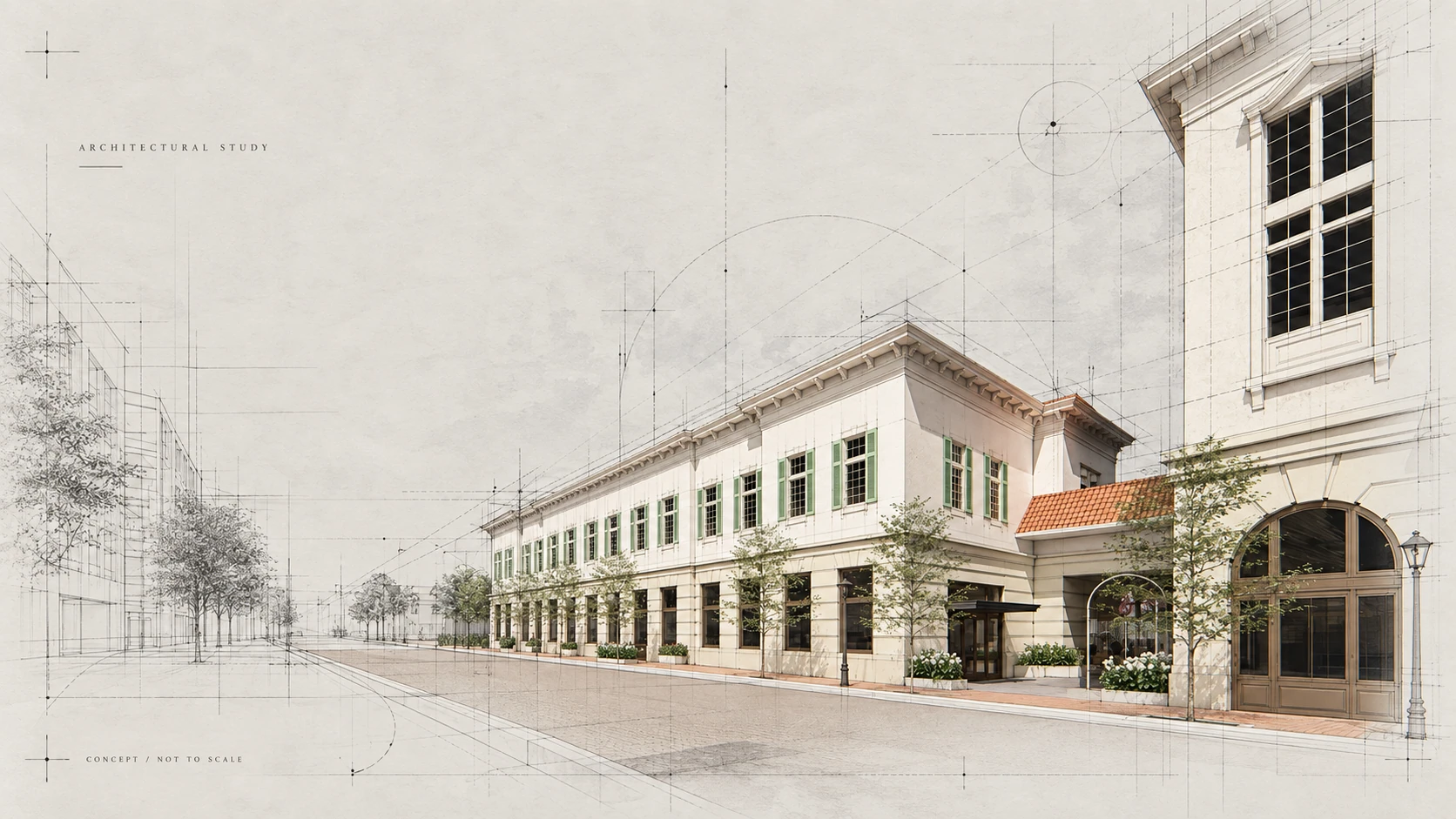

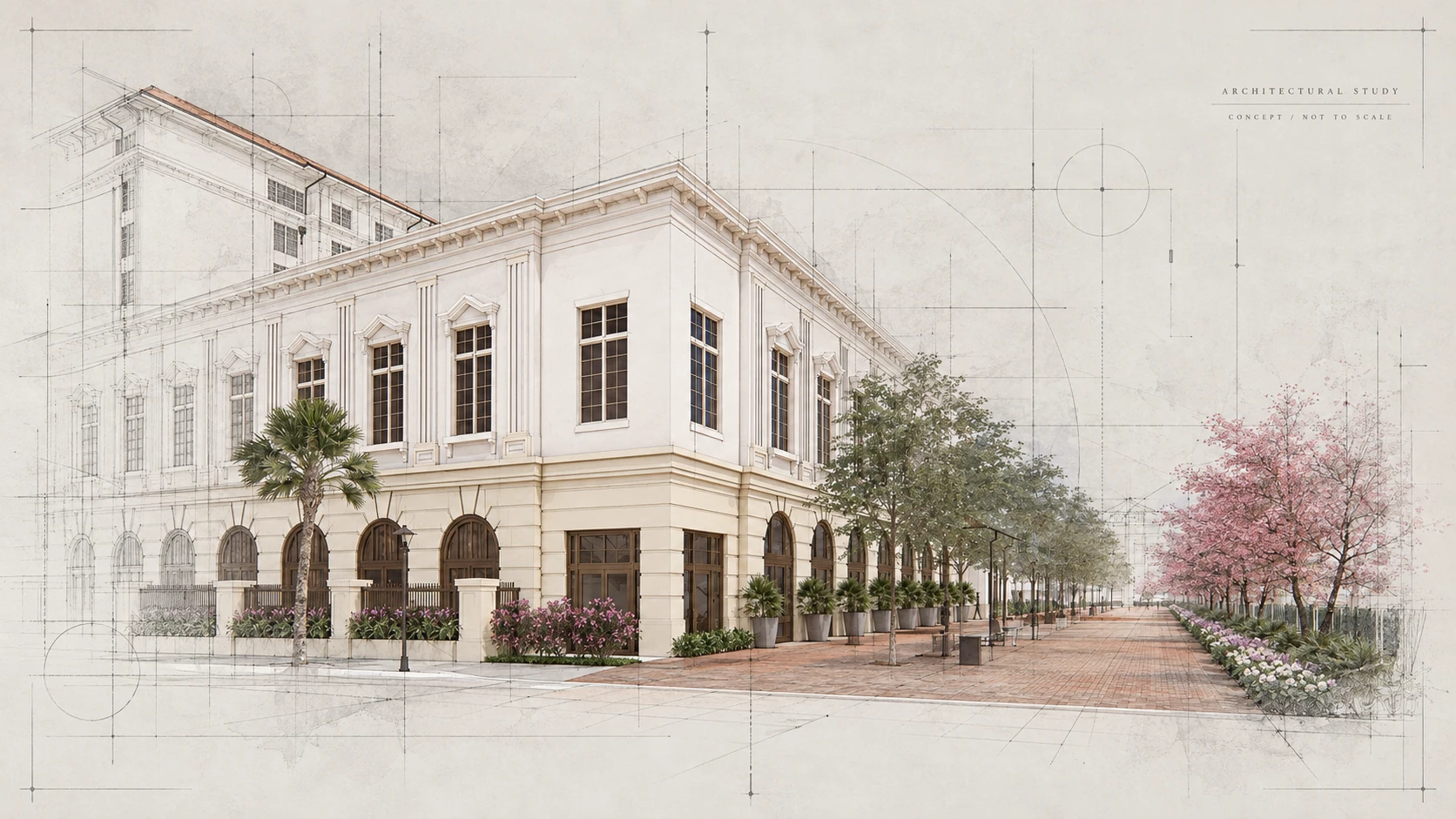

Street perspective

Specified opening systems · locations

Swipe the drawing horizontally to see all marked openings.

1

ES-8000T

Ground-level glazed openings

2

ES-9000

Ground-level entrance doors

System locations shown on the architectural studies; opening assignments follow the final elevations and opening schedule.

ES-46T terrace doors and sidelites occur at the hotel terrace levels; the studies shown here mark the ground-level and window systems. ES-7525 is carried as ground-level alternate pricing; ES-8000T is the basis of design.

411 Meeting Street System locations

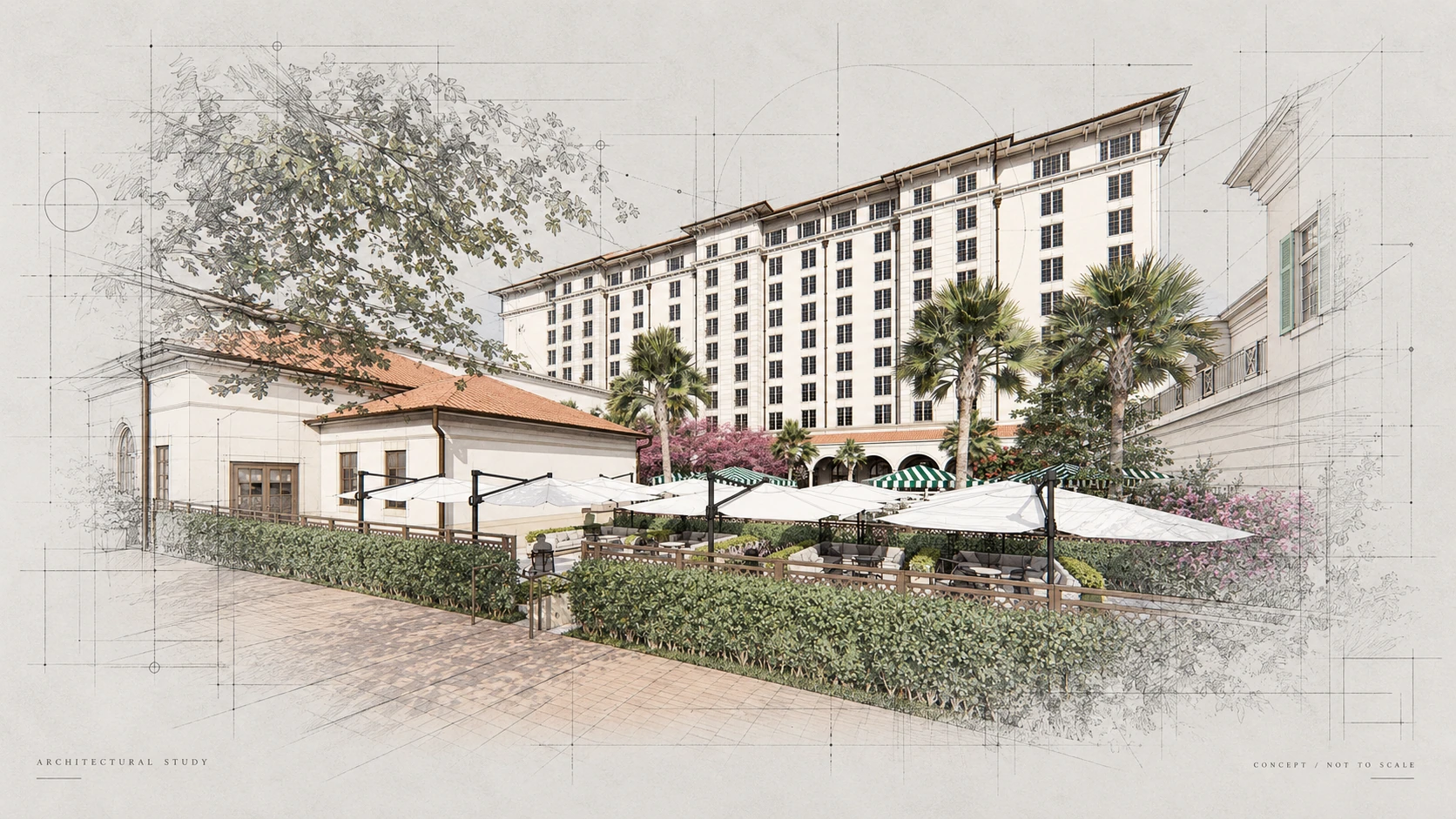

Terrace & hotel

Specified opening systems · locations

Swipe the drawing horizontally to see all marked openings.

1

ES-P300

Hotel fixed windows · Mark 3 drawings

2

ES-8000T

Ground-level glazed openings

System locations shown on the architectural studies; opening assignments follow the final elevations and opening schedule.

ES-46T terrace doors and sidelites occur at the hotel terrace levels; the studies shown here mark the ground-level and window systems. ES-7525 is carried as ground-level alternate pricing; ES-8000T is the basis of design.

411 Meeting Street System locations

411 Meeting Street Delivery & logistics
